Product Description

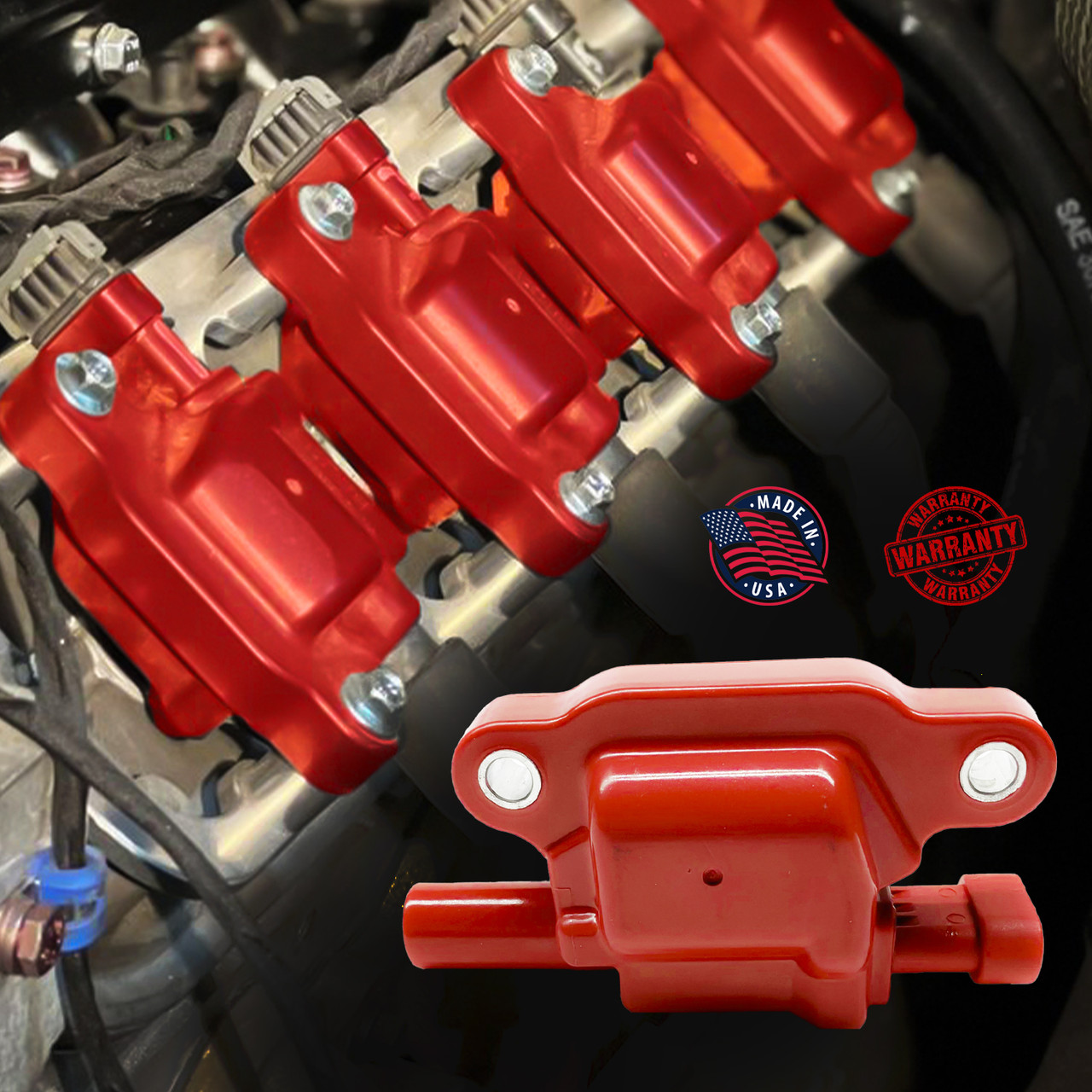

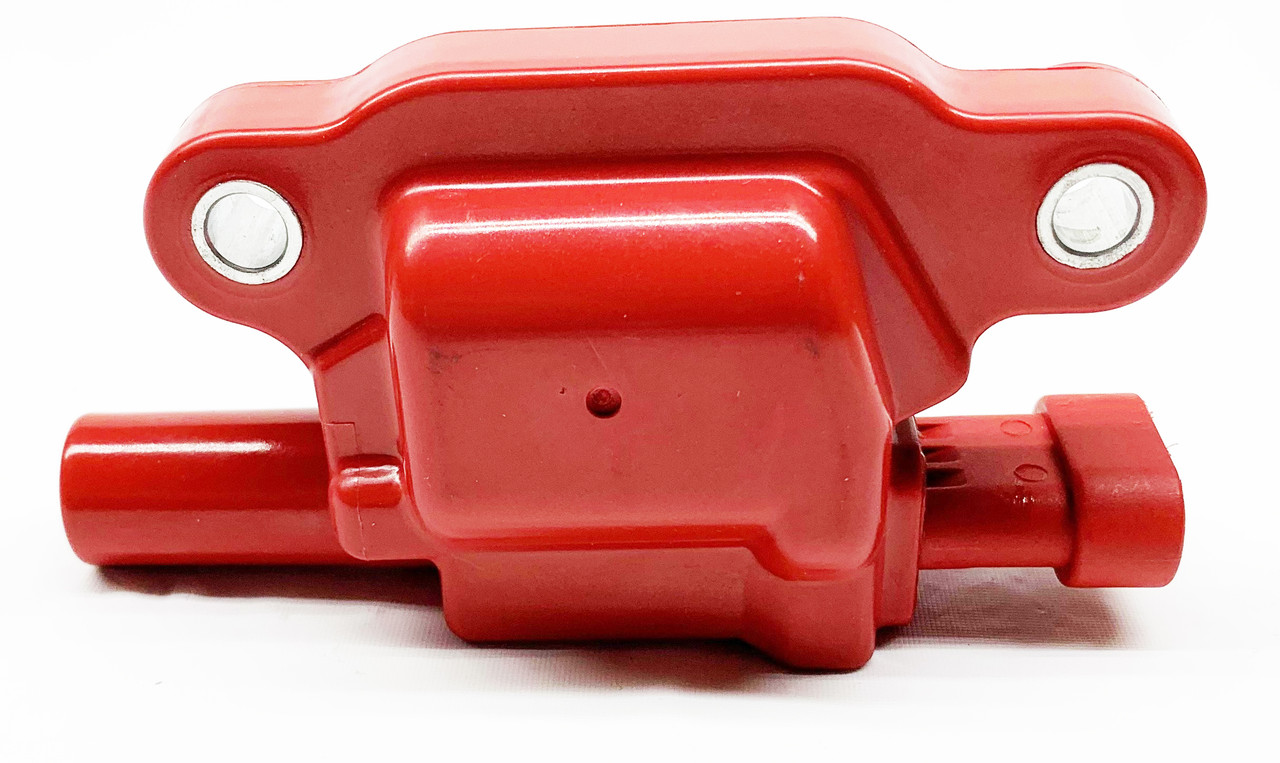

LS Ignition Coils IGCL001-LS LIFETIME WARRANTY!
Intellitronix introduces high output LS Ignition Coils applied in high performance LS Ignition Systems and Racing applications. The LS Ignition Coils are designed for V8 LS-based engines built into Buick, Cadillac, Chevrolet, GMC, H2 Hummer and Pontiac vehicles that operate the Chevy small block Gen III/IV engine.
The high output LS ignition coils provide additional volts of energy for your LS engine and are a direct replacement to the existing coils. The LS Ignition Coils mount in the factory stock location. They have a lower primary resistance, higher rpm capability and far greater output than stock ignition coils.
Other features include:
- Resistance: 0.500 ohms - 2.00K ohms
- Voltage up to 40,000 Volts
- 75:1 Turns Ratio
- Inductance is 2.70 mH
- Peak Current is 220 mA
- Spark lasts 300 Us

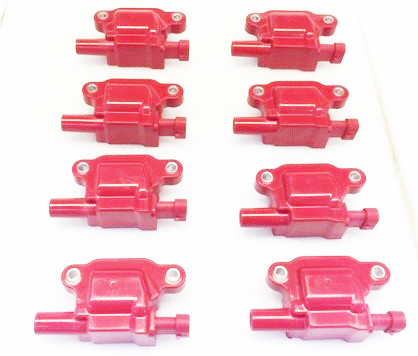

SOLD IN A SET OF 8 COILS!
Easy Install, Lifetime Warranty, Great Price & Gauges for your high-performance vehicle with a LS engine.
DOWNLOADS
Installation Guide
