Product Description
The Intellitronix direct-fit LED Digital Gauge Replacement Dash Panel offers a seamless upgrade for your 1978-1988 Pontiac Grand Prix, enhancing both functionality and aesthetics. Upgrade your driving experience with the Intellitronix LED Digital Gauge Replacement Dash Panel, designed to meet the needs of classic car enthusiasts while offering modern functionality and style.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall and all with the push of a button. Included is the S9013 universal speedometer sending unit.
Tachometer features a custom-designed LED bar graph, the unit is microprocessor controlled with peak rpm memory recall. It has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines.
Water Temperature display reads 50-250°F range and includes sending unit. Please add a note at checkout if you need a 3/8" bushing, because we send the more common 1/2" bushing. Otherwise, you will have to purchase the bushing on your own.
Oil Pressure reads 0-100 PSI range. Oil pressure sending unit is included.
Voltmeter displays 7.0-25.5 volts range and no sending unit required.
Fuel level read 99%-0% in 1% increments and is programable to 4 different ohms ranges: 73-10 ohm, 0-90 ohm, 10-180 ohm, 240-33 ohm.
Indicator Lights: Turn Signals, High beam, Check Engine, Seat Belt, Choke & Brake.
There are 2 options for your indicator lights.
- Remove the printed flexible circuit board and install our panel piece.
- Keep the flexible printed circuit board and remove the back lights you will not need, Intellitronix does offer a new replaceable printed flexible circuit board, P/N FB1310
Easy Install, Lifetime Warranty, Great Price and Gauges for your very special classic vehicle.
Know Before You Buy!
If you have a LS engine, then please be aware that you will need a LS Swap Kit, P/N 8014LS
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Teal and Green
Automatic night dimming.
SPEEDOMETER READING: Order your speedometer in either MPH or KPH

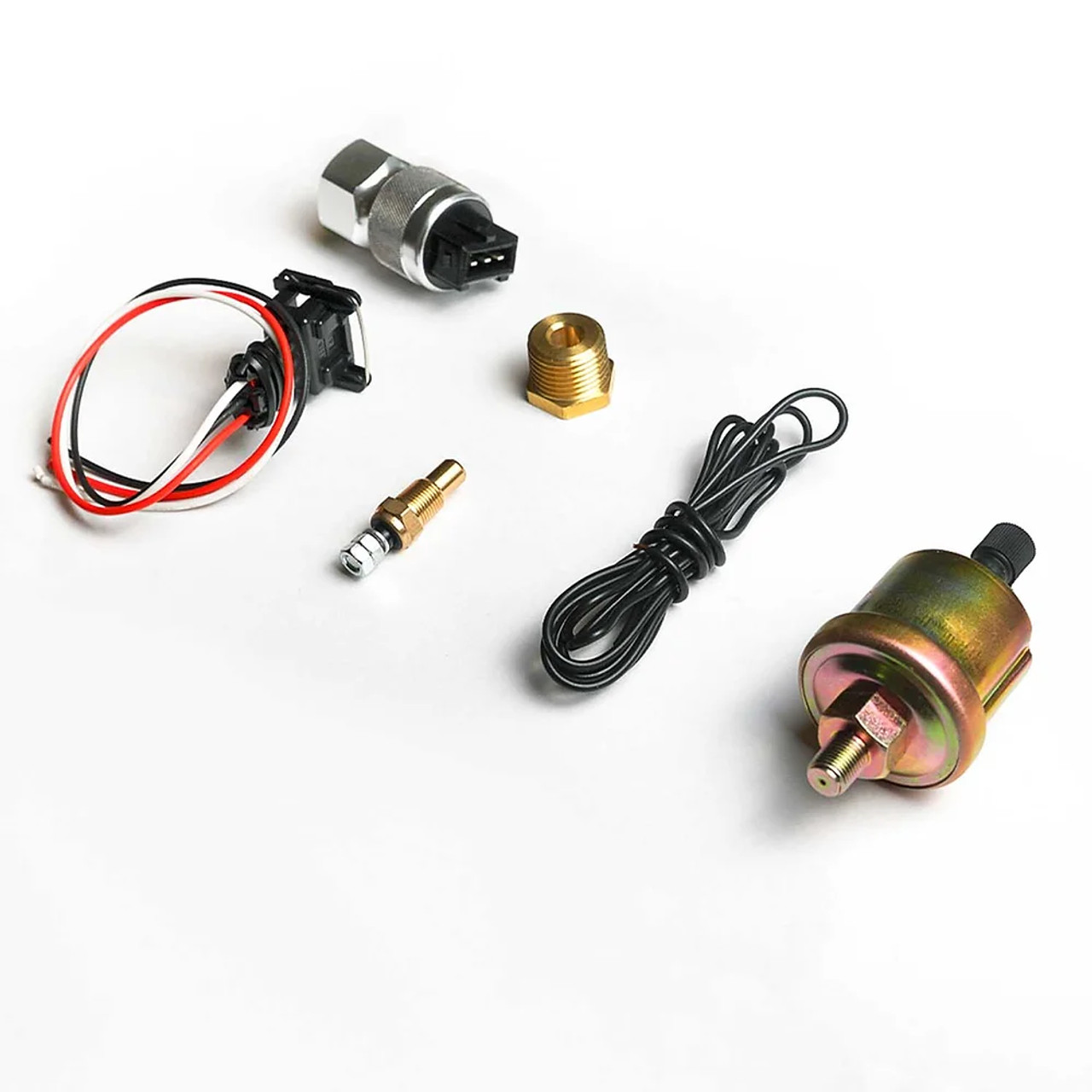

ACCESSORIES: All required sending and sensor units are included.
Upgrade your setup with these premium features:

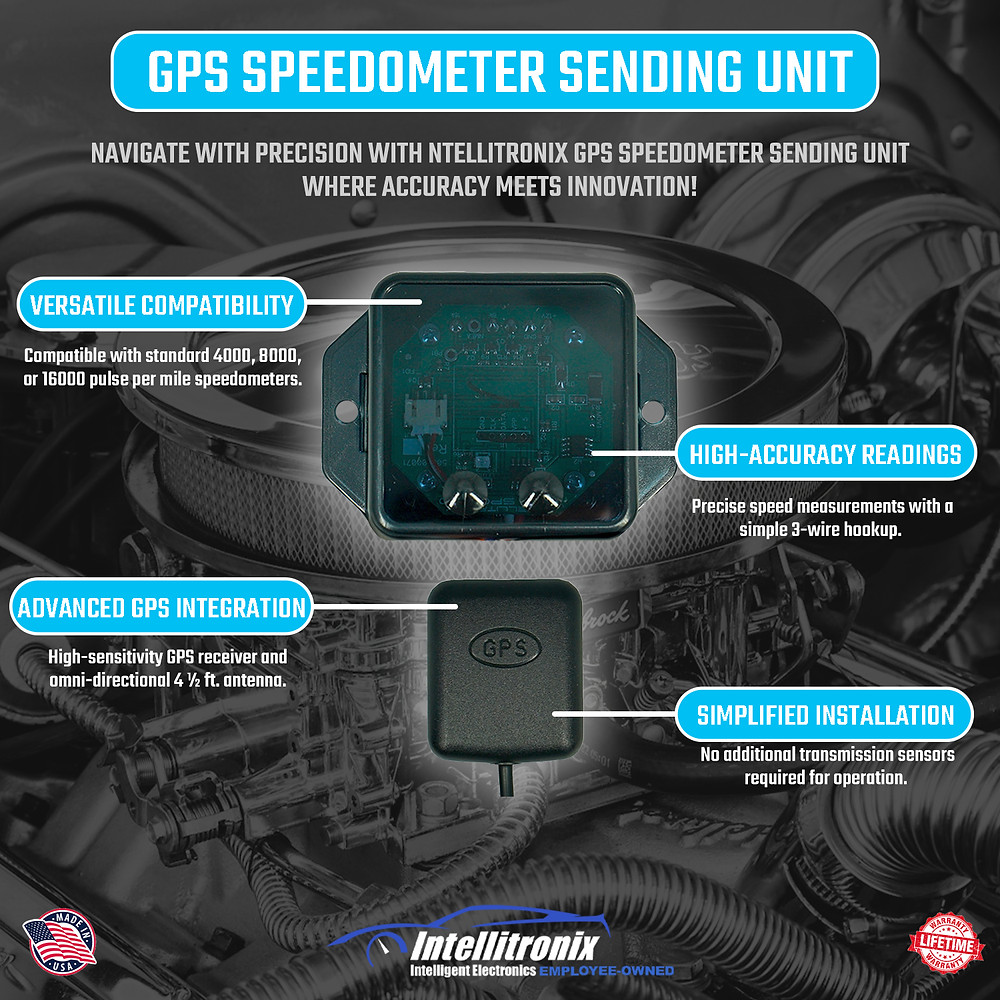

GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.

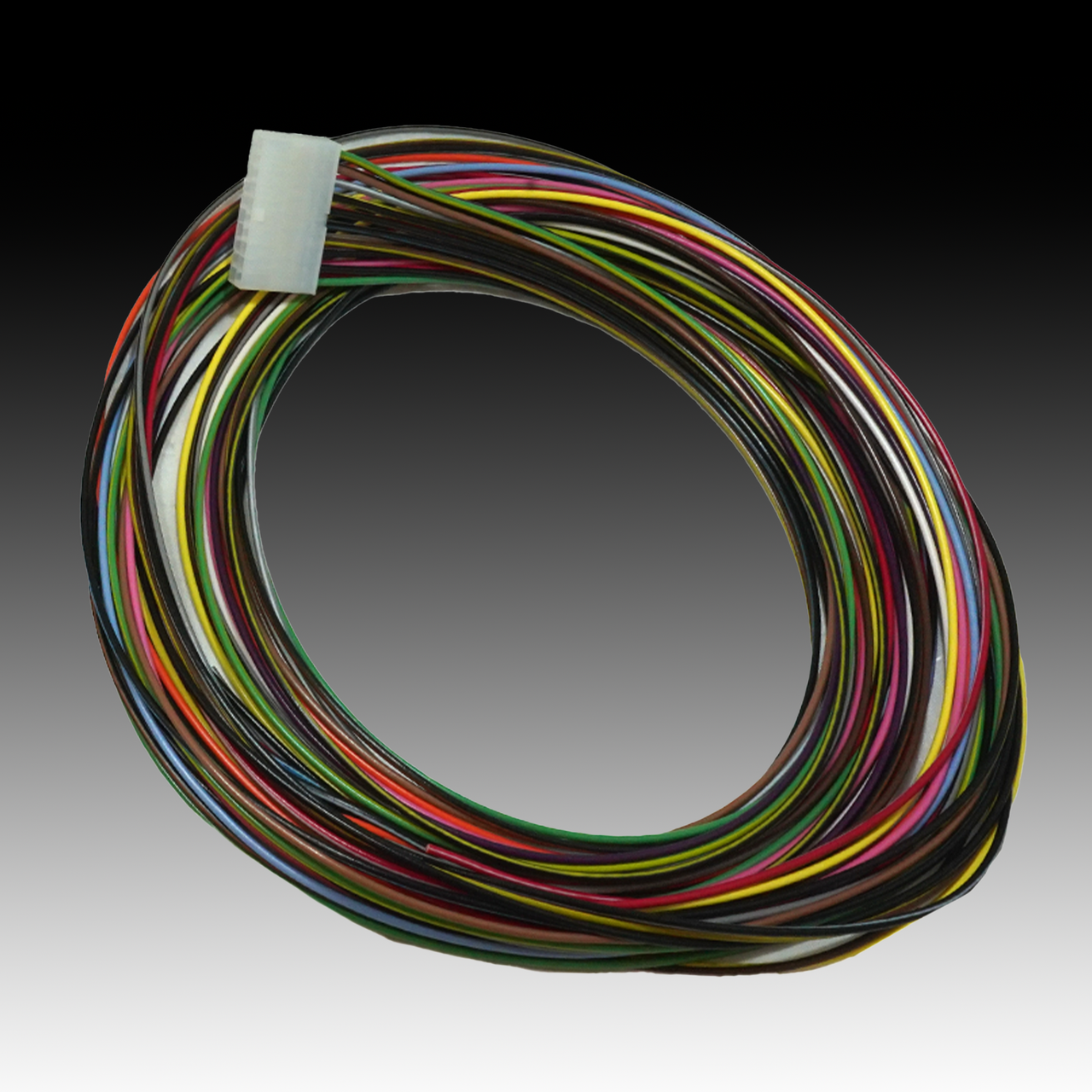

Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for:
Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.
LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.
