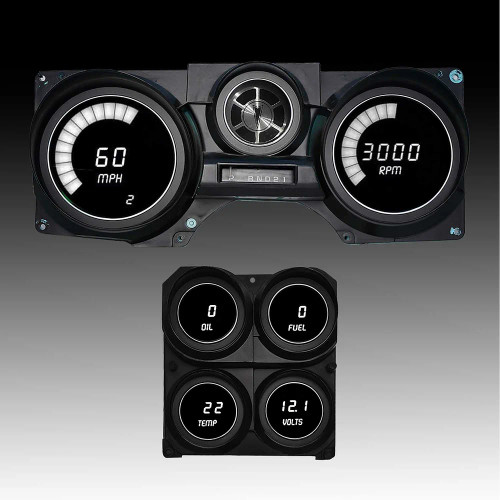

1978-1988 Monte Carlo-El Camino LED Digital Gauge Panel - DP9002
Your classic 1978-1988 Monte Carlo or El Camino will look stunning with Intellitronix 1978-1988 Monte Carlo-El Camino LED Digital Gauge Panel. 1978-1988 Monte Carlo-El Camino LED Digital Gauge Replacement Panel comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass face plates, universal temperature, oil pressure, and speedometer sending units with senders and sensors for vehicles without electronic transmission or cruise control.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use Intellitronix S9013 universal speedometer sending unit included, if your vehicle is not equipped with a functional cruise control.
Tachometer displays 0-9900 RPM in 100 RPM increments.
Water Temperature displays 100-300°F range with sending unit S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please make a note at check-out; otherwise, you will have to get the correct bushing on your own.
Oil Pressure reads 0-100 PSI range and the oil pressure sender is included.
Voltmeter displays 7.0-25.5 volt range and no sending unit is required.
Fuel Level reads 0-99% range in 1% increments and works with existing GM fuel level sending unit.
1978-1988 Monte Carlo-El Camino with this elegant LED Digital Replacement Gauge Panel features turn signals and high beam indicator.
Know Before You Buy!
If you have a LS engine, you may need metric to nonmetric adapters from for our sending units. If not included in your engine kit, you may have to purchase them separately. Your LS engine has a Tachometer output equivalent to a 4-cylinder, instead of 8-cylinder. Include a note in the comments when you check out as to which cylinder engine you have, so we can set the tachometer correctly. The tachometer is programmable, so you can set it yourself if needed.
BEZEL NOT INCLUDED
AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
