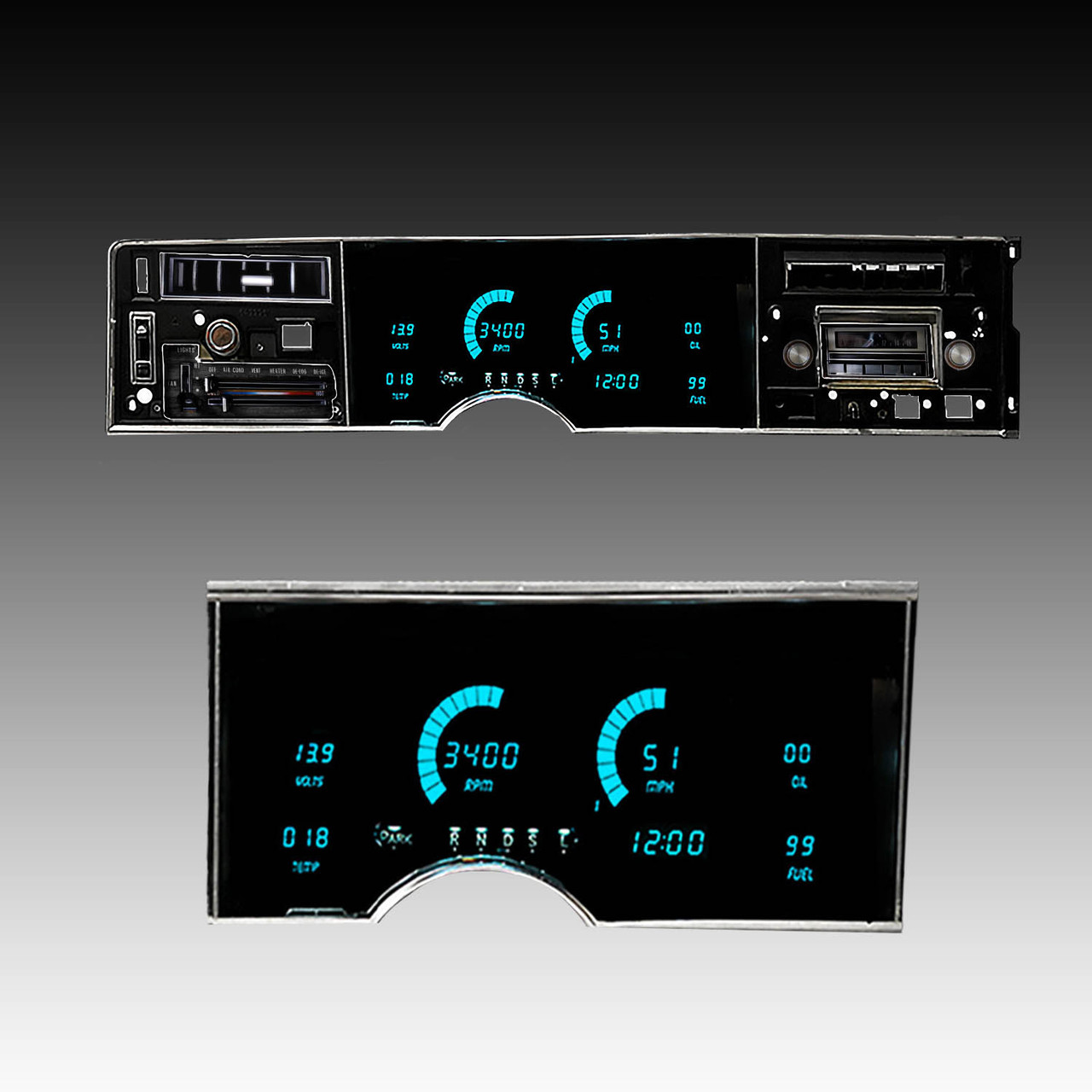

1974-1976 OLDSMOBILE DELTA 88 LED Digital Replacement Gauge Panel - DP1907

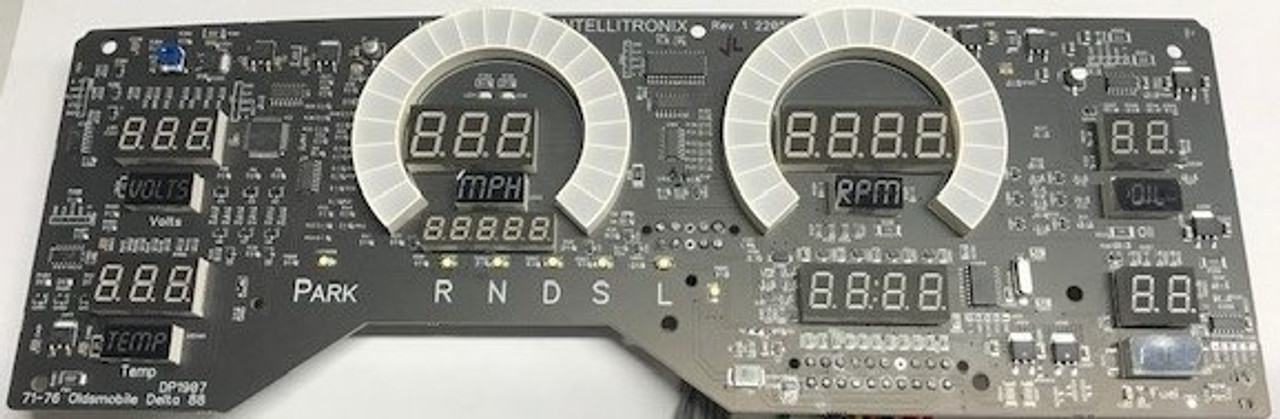

Your 1974-1976 OLDSMOBILE DELTA 88 will look stunning with a LED Digital Dash Panel from Intellitronix. The dash comes complete with a direct fit printed circuit board, custom fit "smoked" plexiglass faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall and all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
Tachometer features a custom-designed LED bar graph, the unit is microprocessor controlled with peak rpm memory recall, and automatic night dimming. It has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines.
Water Temperature displays 50-350°F range with sender included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out; otherwise, you will have to get the correct bushing on your own.
Oil Pressure displays 0-100 PSI range. Oil pressure sender included.
Voltmeter displays 7.0-18.0 volt range and no sending unit is required.
Fuel level is programable to 4 different ohms ranges: 73-10 ohm, 0-90 ohm, 10-180 ohm, 240-33 ohm.
The panel also feature turn signals, high beam indicator and parking brake making it the ultimate way to keep the ride you love cruising through the times.
Easy to install, Lifetime Warranty, Great Price, & Gauges that bring your vehchele to the next level.
BEZEL NOT INCLUDED
AVAILABLE COLORS: White, Red, Blue, Teal and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
