Product Description

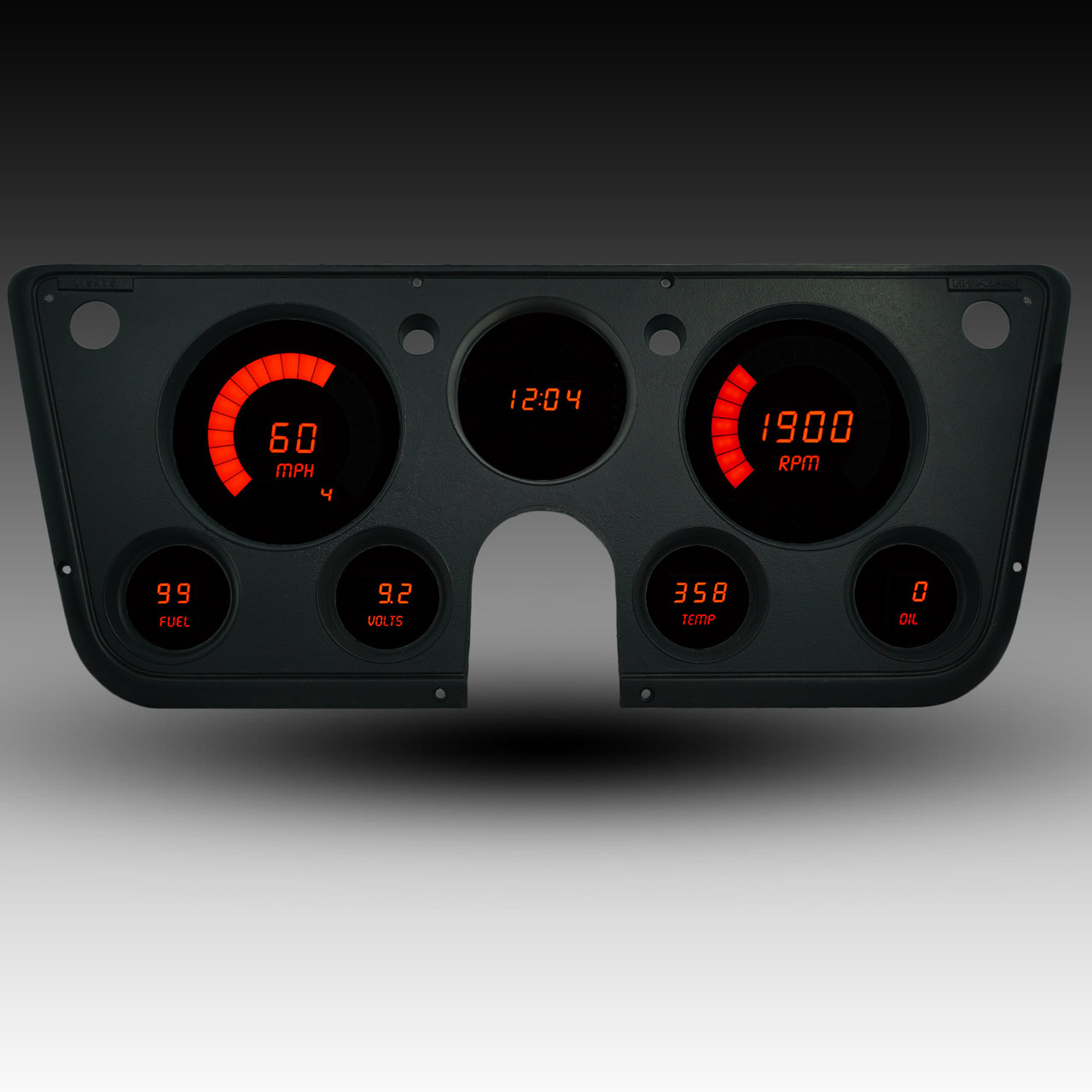

1967-72 Chevy Truck LED Digital Gauge Panel - DP6003
Price Match Guarantee: Email a link with a lower advertised price with your contact information to sales@intellitronix.com and we will be match or beat that price
Cruising in your 1967-72 Chevy Truck with your new Digital Gauge Panel Replacement by Intellitronix with make you the envy of your friends. The 1967-72 Chevy Truck Direct Fit Digital Replacement Dash comes complete with direct fit printed circuit boards, custom fit "smoked" Plexiglas faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
The Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 with universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
Other gauges include the Tachometer with 0-9,900 RPM in 100 RPM increments.
The Water Temperature display with 100-300°F range with sender S8013 included.
Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out; otherwise, you will have to get the correct bushing on your own.
The Oil Pressure display with 0-100 PSI range with oil pressure sender included.
Voltmeter display with 7.0-25.5 volt range and no sending unit required.
Fuel Level display with 0-99% range in 1% increments and works with existing GM fuel level sending unit.
The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
Note: When installed the gauge cluster may disable the cruise control system.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:

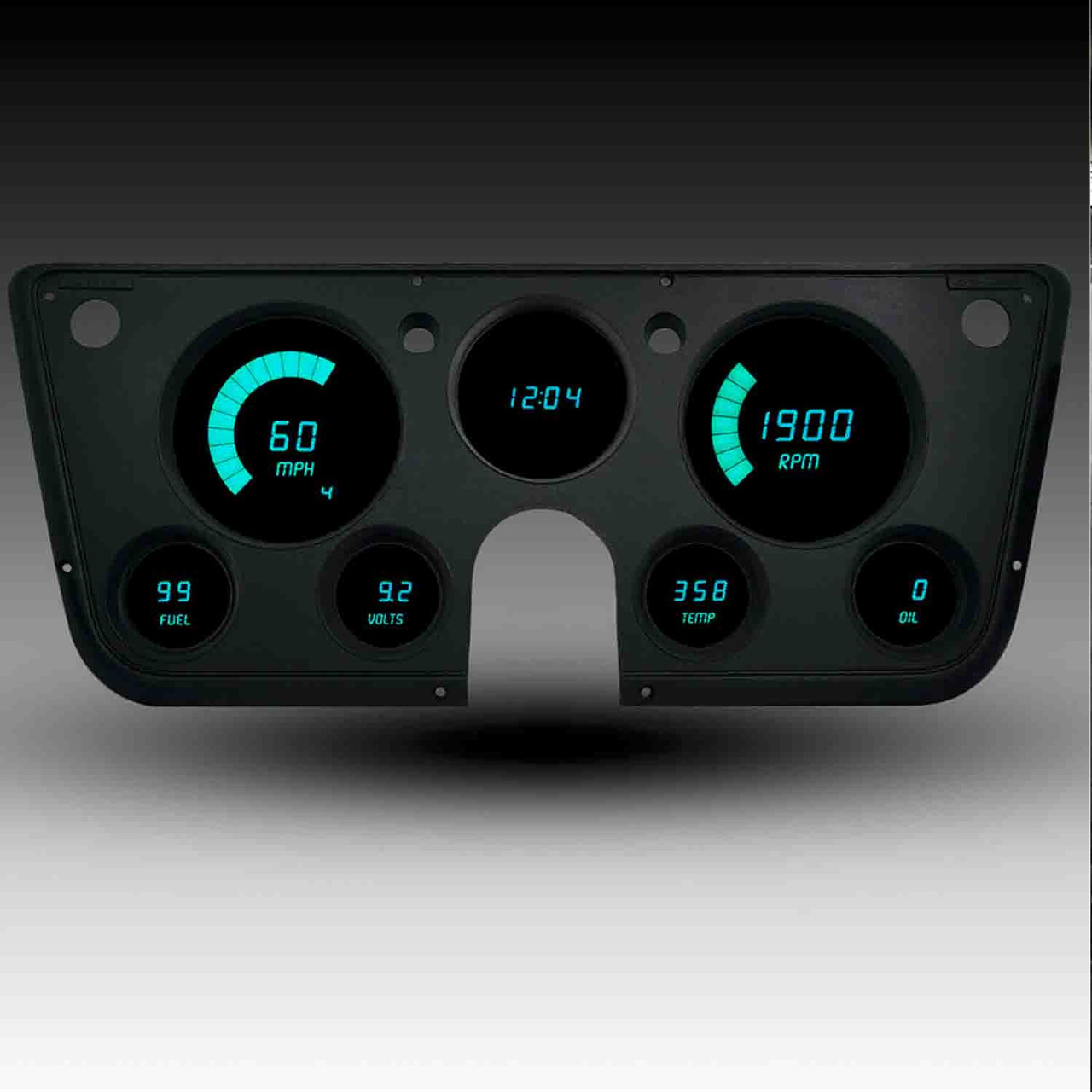

AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
DOWNLOADS
Installation Guide
