1964-66 Chevy Truck LED Digital Bargraph Gauge Panel - BG6002

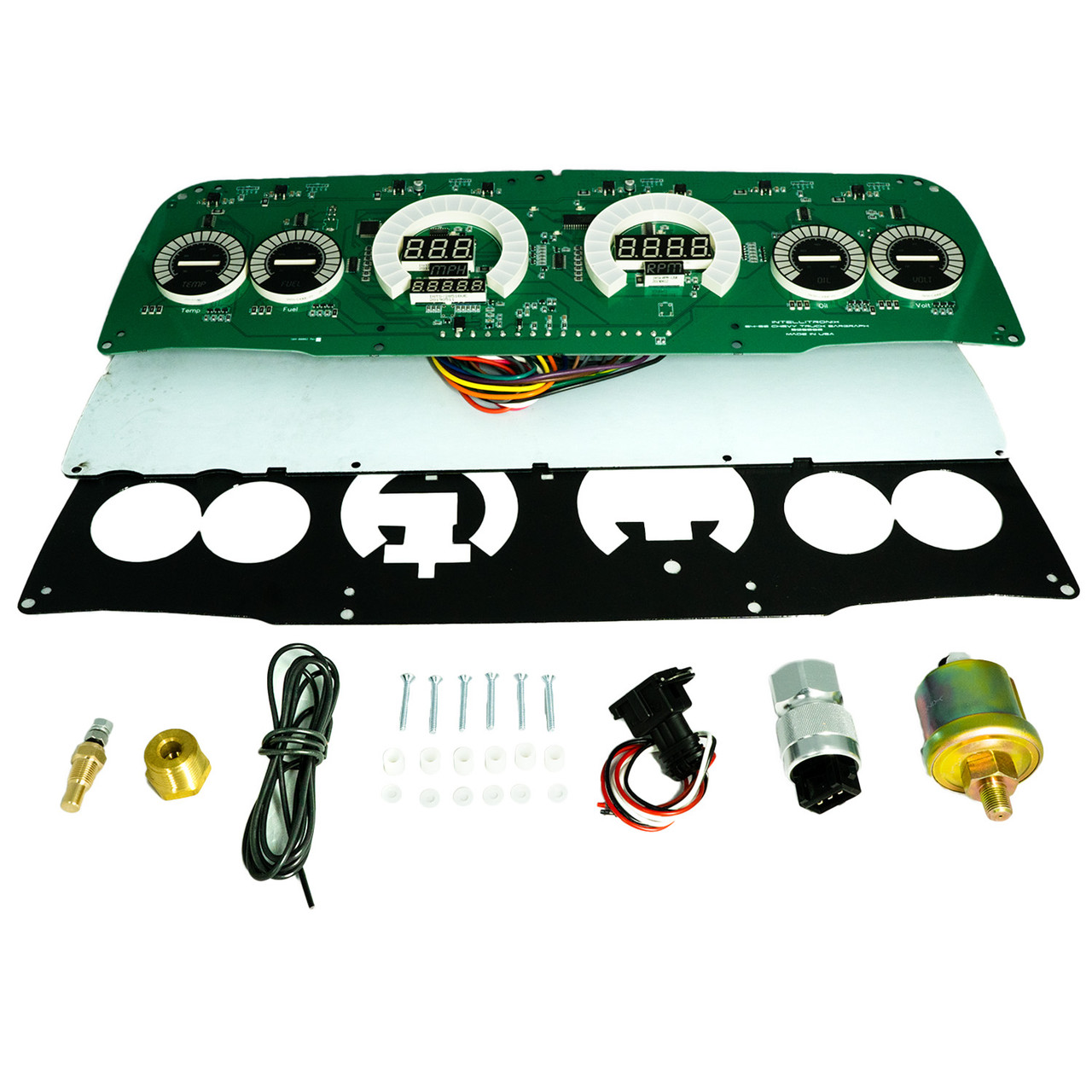

Strut your 1964-66 Chevy Truck down the avenue with Intellitronix 64-66 Chevy Truck LED Digital Bargraph Gauge Replacement Dash with its sweeping gauges that will give you “start” power. The 1964-1966 Chevy Truck LED Bargraph Replacement Dash comes with a printed circuit board, smoked plexiglass faceplate, universal sending units for water temperature S8013, oil pressure S8868, speedometer S9013, and if required, a hardware kit plus installation instructions.
Dimensions 16 ¾” L x 3/4 D x 4”H
Speedometer reads up to 255 mph and includes odometer, trip meter, one button calibration, 0-60 time, ¼ mile elapsed time and high-speed recall.
Tachometer displays 0–9900 RPM in 100 RPM increments.
Water Temperature displays a range of 18–255°F.
Oil Pressure shows a range of 0 – 99 PSI.
Voltmeter displays 7.0 – 18.5 volts range. No sending unit required.
Fuel Level reads 0 – 99% range in 1% increments. User programmable to work with GM 0-30 OHM or 0-90 OHM industry standard fuel senders.
Indicators include turn signals, high beam indicators and parking brake.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
