Product Description

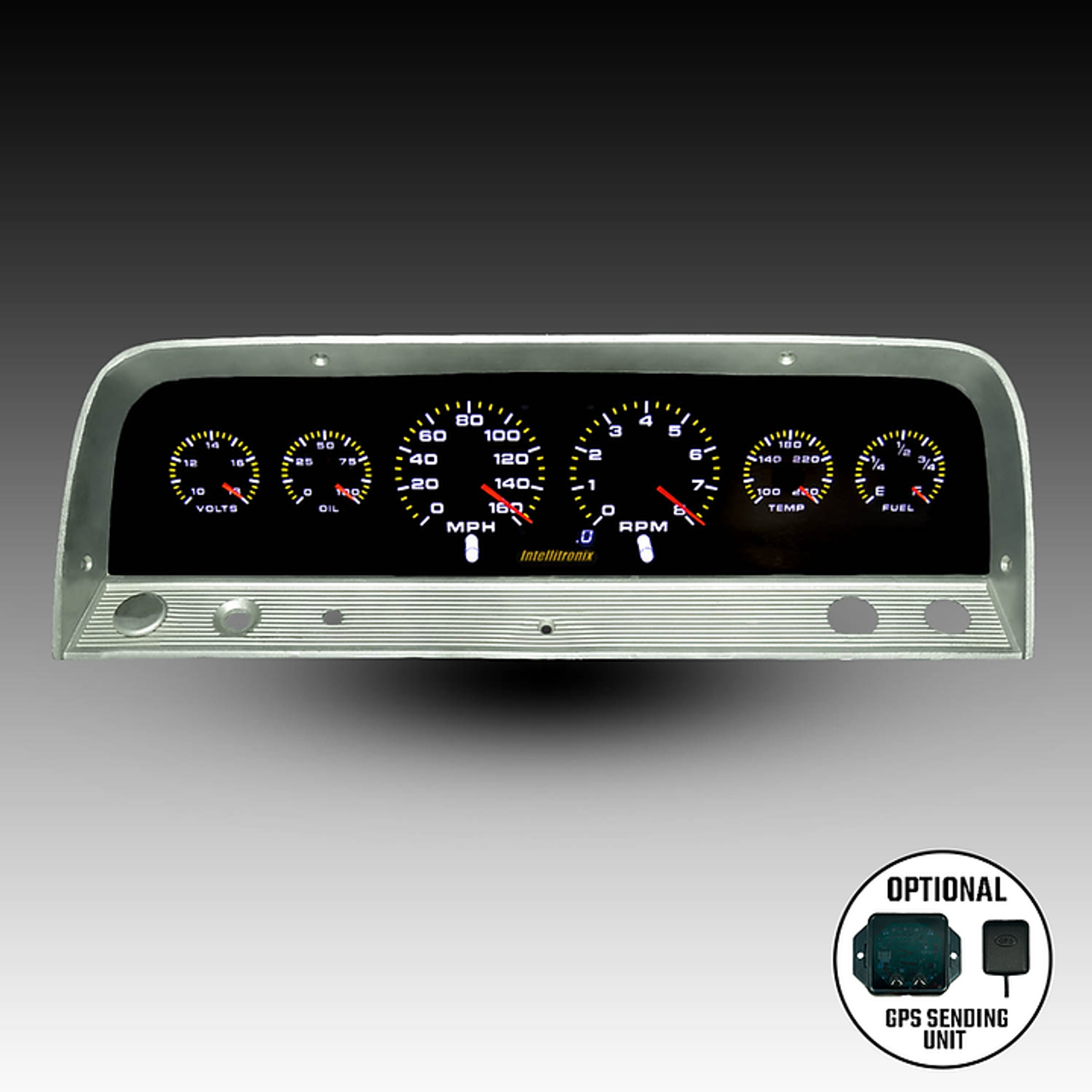

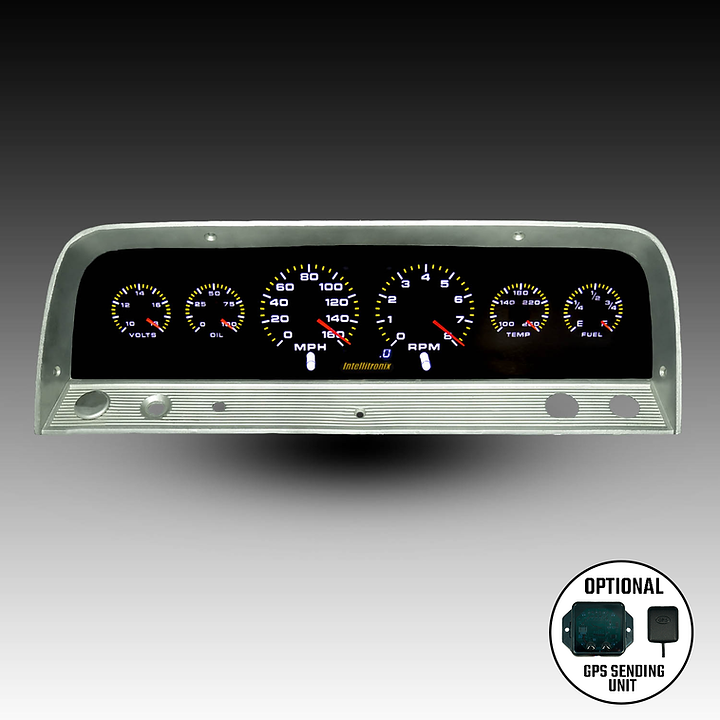

1964-66 Chevy Truck Analog Panel - AP6002
Make your 1964-66 Chevy Truck shine with Intellitronix Analog Direct Fit Replacement Gauge Panel. Our black polycarbonate sub surface with brush stroke finish makes it an unforgettable show stopping dash. This is truly a work of art. You can now have an Analog direct fit for your 64-66 Chevy Truck.
Speedometer, Tachometer for 8-6-4 cylinder, Fuel Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge.
Turn signal indicators, and high beam indicator included. It also comes with factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.
Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer sender from Intellitronix.
Automatic nighttime dimming.
Voltmeter with high and low voltage reads from 10.0 to 18.0
Oil Pressure gauge displays from 0-100 psi
Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission, odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button!
Tachometer reads from 0 to 8000 in 100 RPM increments
Water Temperature gauge reads from 100 to 260 degrees Fahrenheit.
Fuel Level gauge is user programmable to work with 0-30 and 0-90 ohms. Additional programming available.
Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.
BEZEL NOT INCLUDED
FEATURES:
ACCESSORIES: All required sending and sensor units are included
Upgrade your setup with these premium features:
GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.

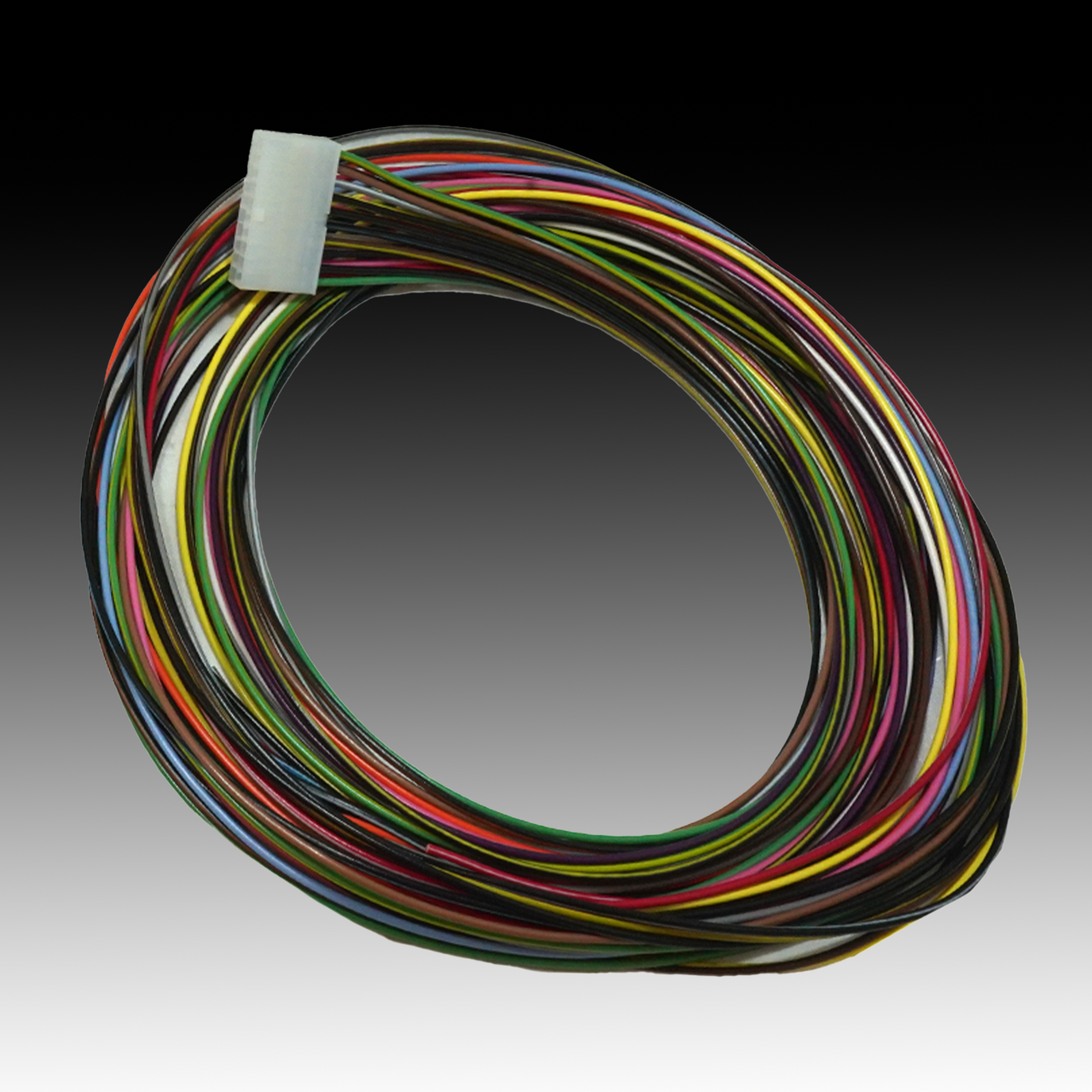

Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for:
Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.
LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.
