Product Description
Key Features:
Speedometer
-
High speed recall
-
0-60 MPH time
-
1/4 mile elapsed time recall
-
Reads up to 255 MPH
-
Odometer and trip meter
-
Calibrate to adjust for different tire sizes, wheel sizes, and gear ratios
-

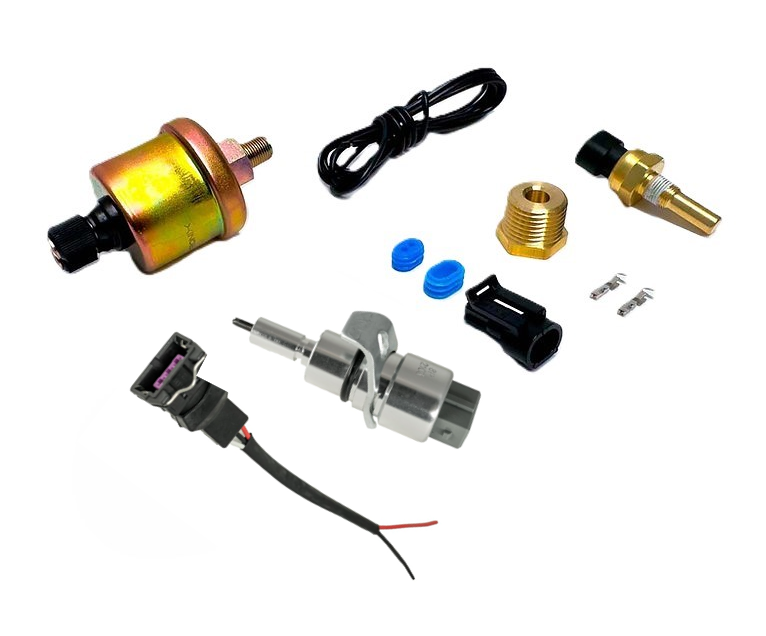

Ford speedometer sending unit included (S9024)
Tachometer
- Tachometer will read out in the sweep and odometer when in speed/tach combo mode
- Microprocessor controlled with peak rpm memory recall
- Works on 1-2-4-6-8-10-12 cylinder engines
- Programmable red line (full bars is set at default of 6500 RPM)
*If using with an LS engine you may also need the Intellitronix LS swap kit (8014LS)
Water Temperature
- 10-355 Fahrenheit degree accuracy
- Sending unit included (1/8" NPT)
- 1/2" adaptor included unless specified otherwise
Oil Pressure
- Reads in 1 PSI increments from 00 to 99 PSI
- Comes with S8868 oil pressure sender, adaptor not included
Voltmeter
- Reads in .1 volt increments from 7.0 to 16.0 volts
- No sender needed
Fuel Level
- reads in percentage (empty-full) 0-100% range in 1% increments
- Ohm ranges include:
- 73 - 10 ohm
- 16 - 158 ohm
- Universal 240 - 33 ohm
- 22 - 145 ohm
-
Additional features:
- High Beam Indicator
- Check Engine Light
- Brake Indicator
- Turn Signals
- Night time dimming
Note: Bezel not included.
Speedometer Options: Available in MPH or KPH (add note at checkout)
Optional add ons:
GPS Speedometer Sending Unit (S9020): Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Use to bypass vehicle transmission or computer, picks up speed from satellite signal
Universal Gauge Harness (QCWH20): 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Please note this does not plug into the factory harness
LS Swap Kit (8014LS): Required for GM LS engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor to boost tach signal
