Product Description

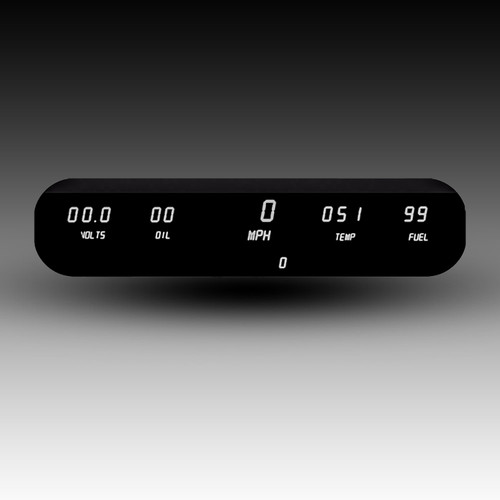

6-Gauge Universal LED Digital Panel - DP10002
An exquisite 6-Gauge LED Digital Universal panel with a faceplate that completely blacks out when ignition is off with no logos, legends, or other symbols. This unique 6-Gauge LED Digital Universal panel uses Ultra-Bright LEDs and includes speedometer, tachometer, water temperature, oil pressure, voltmeter, user selectable fuel level gauge, turn signals, and high beam indicator.
Automatic nighttime dimming.
The gauge panel measures 13.5 in. wide, 2.5 in. high, and 3/4 in. deep.
Voltmeter with high and low voltage alarm displays from 7.0 to 25.5.
Oil Pressure gauge reads from 0-100 psi.
Speedometer displays up to 255 and includes odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time.
Tachometer reads from 0 to 9900 in 100 RPM increments.
Water Temperature displays from 50 to 350 degrees Fahrenheit.
Fuel Level Reads from 0-99% and is programmable to work with Ford, GM, Chrysler, VDO, and aftermarket sending units.
Features Right and Left LED turn signal indicators and High Beam LED indicator.
Turn signal indicators, and high beam indicator included. It comes with all necessary sending units, clear plexiglass, hardware, and instructions.
All necessary sending units including speedometer, If you need a Ford sending unit for the speedometer, please include a note in your order and we will send one; otherwise, you will get the GM/Mopar/VW sending unit or you will have to order the Ford one separately.
For water temperature sending unit S8013, please send a note to seller if you need a 3/8" bushing. We will send the more common 1/2" bushing, otherwise, you will have to supply the bushing on your own. The oil pressure sending unit S8434 is included.
FEATURES:
AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
DOWNLOADS
Installation Guide
