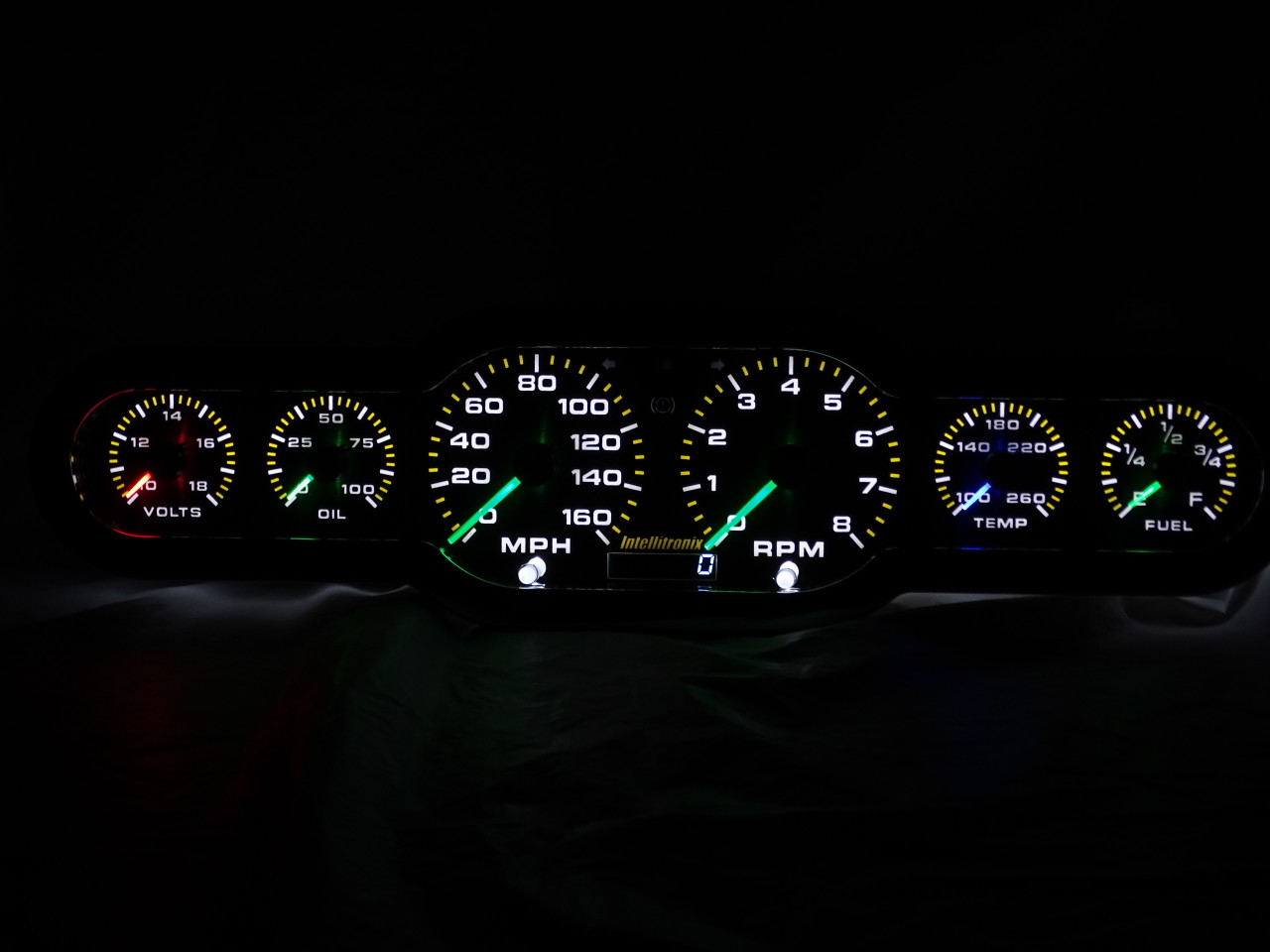

6-Gauge Analog Universal Panel with Color Changing Needles - AP30002
Impress your friends with this clean, sleek, classic design in Intellitronix new 6-Gauge Universal Analog Color Changing Gauge Needles Panel. The black polycarbonate sub surface with brush stroke finish makes it an unforgettable show stopping dash. This is truly a work of art. You can now have our 6-Gauge Universal Analog Color Changing Gauge Needles Panel to light up your dash with colors ranging from green, blue, yellow, orange and red.
Dimensions are 17" length x 4 3/4" height x 2 3/4" width
Speedometer, Tachometer for 8-6-4-cylinder, Fuel Level, Voltmeter, Oil Pressure, Water Temperature gauges and Clock.
Turn signal indicators, and high beam indicator included. It also comes with factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.
Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer sender from Intellitronix.
Automatic nighttime dimming.
Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission, odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time (ET), all with the push of a button! The speedometer comes with a sending unit for GM/Universal. If you have a Ford, you will need to ask for a Ford sending unit.
Needle Colors: Starts at Green then as you gradually increase speed, the needle changes to Yellow then moves through Orange and goes all the way to max speed Red
Tachometer reads from 0 to 8,000 in 100 RPM increments.
Needle Colors: Starts at Green then as you gradually increase RPMS, the needle changes to Yellow then moves through Orange and goes all the way to max Red.
Voltmeter with high and low voltage reads from 10.0-18.0 volt range.
Needle Colors: Starts at Red then as you gradually increase volts, the needle changes to Orange then moves through Green and goes all the way to max Red again
Oil Pressure Gauge reads from 0-100 psi.
Needle Colors: Lowest pressure will be at Red then as it gradually increases, the needle changes to Yellow then moves to max pressure Green.
Water Temperature Gauge reads from 100-260 degrees Fahrenheit.
Lowest Temp will be at Blue then as it gradually increases, the needle changes to Green then moves to max Red.
Fuel Gauge, user programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders, reads from 0-99%.
Needle Colors: Full tank at Green then as you gradually decrease fuel, the needle changes to Yellow then moves through Orange and goes to empty Red.

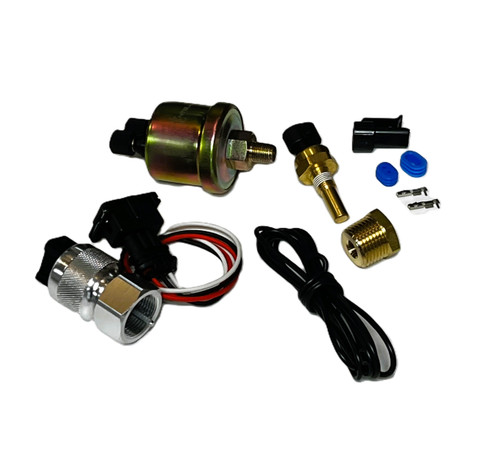

The speedometer sending unit is included. If you need a Ford sending unit, then please add a note at checkout and we will send one--otherwise, you will get the GM/Mopar/VW one and will have to order the Ford one separately, water temperature sender. Please add a note at checkout, if you need a 3/8" bushing because we send the more common 1/2" bushing--otherwise, you will have to supply the bushing on your own), and oil pressure sender.
Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your vehicle to the next level.
FEATURES:
ACCESSORIES: All required sending and sensor units are included.
DOWNLOADS
Installation Guide
