Product Description
Upgrade any vehicle, vintage or new, with Bargraph-CREATE-A-DASH. Designed for enthusiasts seeking a personalized touch paired with Intellitronix gauge accuracy.
Features

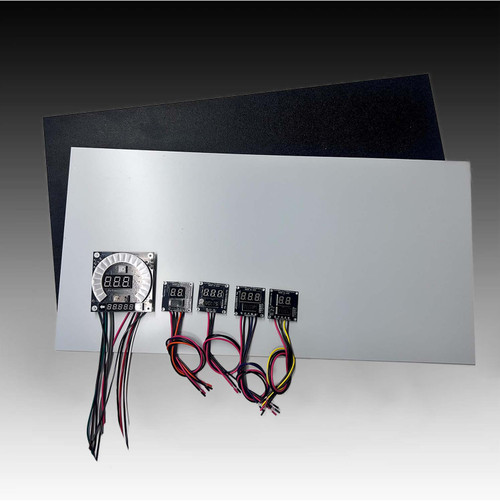

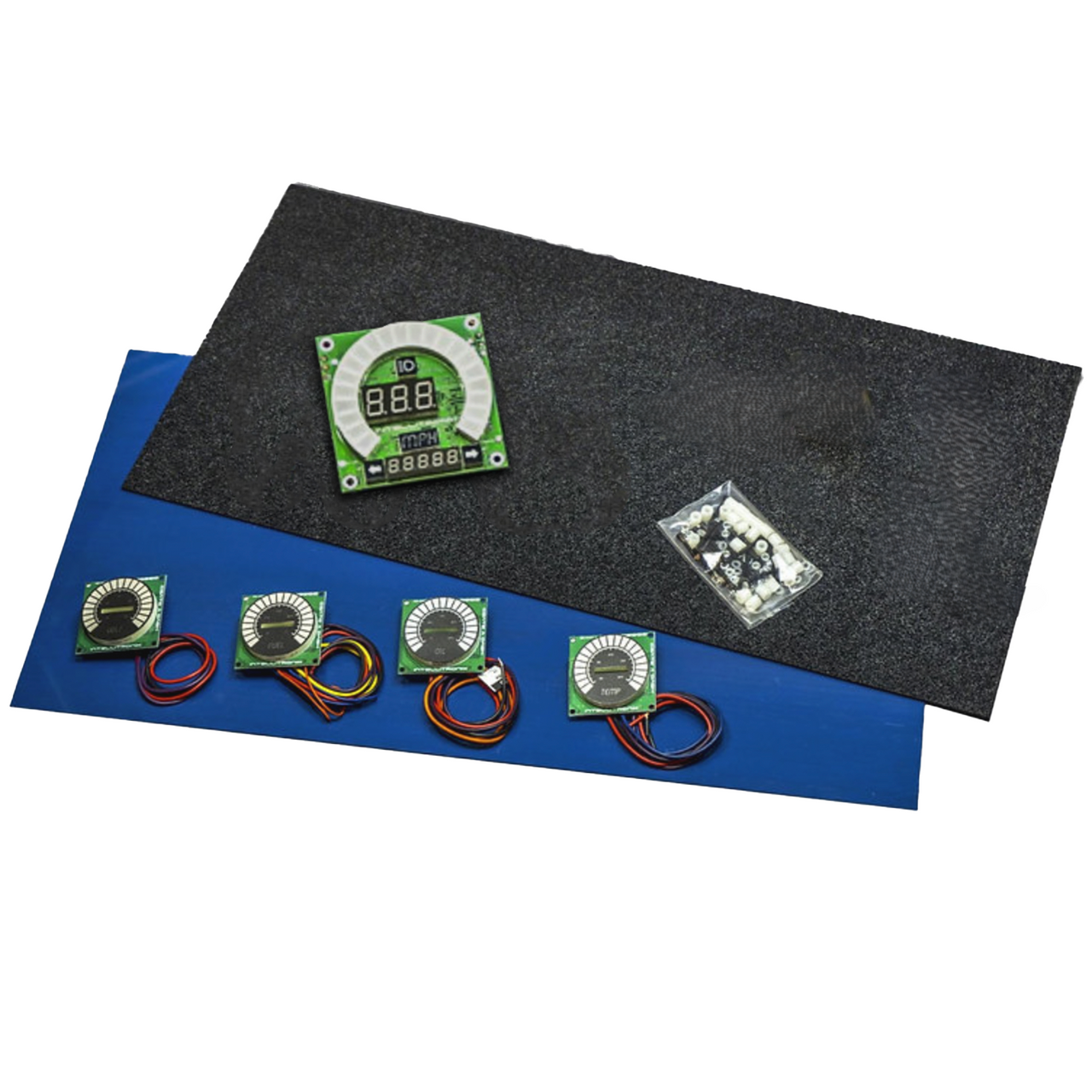

Customizable Layout: Separate circuit boards for flexible positioning. Kit includes a trimmable 12" x 24" ABS back panel and trimmable 12" x 24" Plexiglas sheet.
Comprehensive Kit: Mounting hardware, sending units, and extra features like Recall, 0-60, and ¼ mile Time a Highspeed recall.
Universal Fit: Suitable for any vehicle; vintage or new. Cut, mount, and arrange effortlessly.
Warranty:** All gauges backed by a Lifetime Warranty.
GPS Option: Integrated GPS functionality for precise speed tracking and location-based features.
Gauge Specifications:
Speedometer/Tachometer Combo are 3-7/16" and the fuel, volts, temp & oil press are 1-11/16" x 1-11/16" with mounting hardware

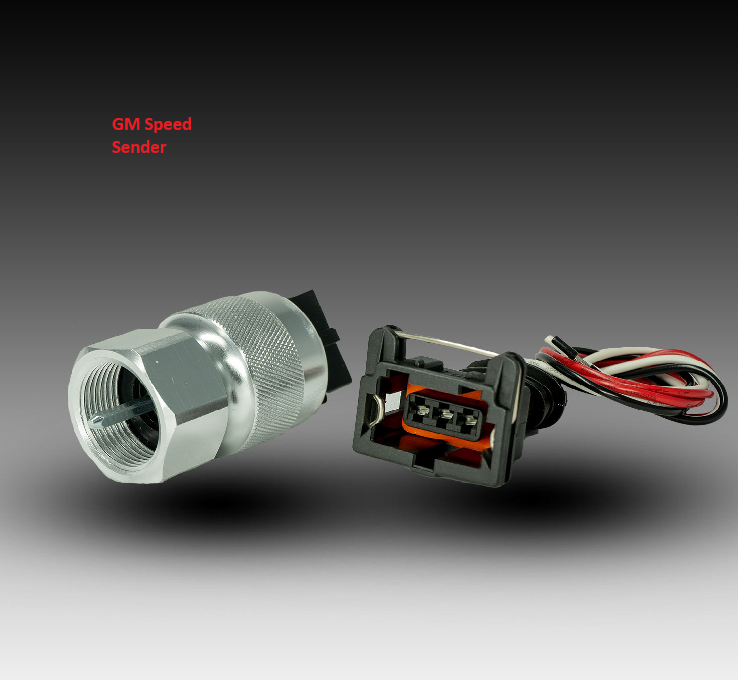

Speedometer/Tachometer Combo Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. Electronic speed sender included, S8013.
Tachometer reads 0-9900 RPM and in 100 RPM increments.
Temperature: 22° to 255°F range (Sender S8013 included).
Oil Pressure: 0-99 PSI range (sender S8868 included).
Voltmeter: 12-16 volt range (no sender required).
Fuel Level: reads in percetangae increments of 99-0 %, selectable ohms ranges of 0-90, 73-10, 10-180 and 240-33
The panel features turn signals and high beam indicator.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
AVAILABLE COLORS: White, Red, Blue, Green and Teal.
SPEEDOMETER READING: Order your speedometer in either MPH or KPH

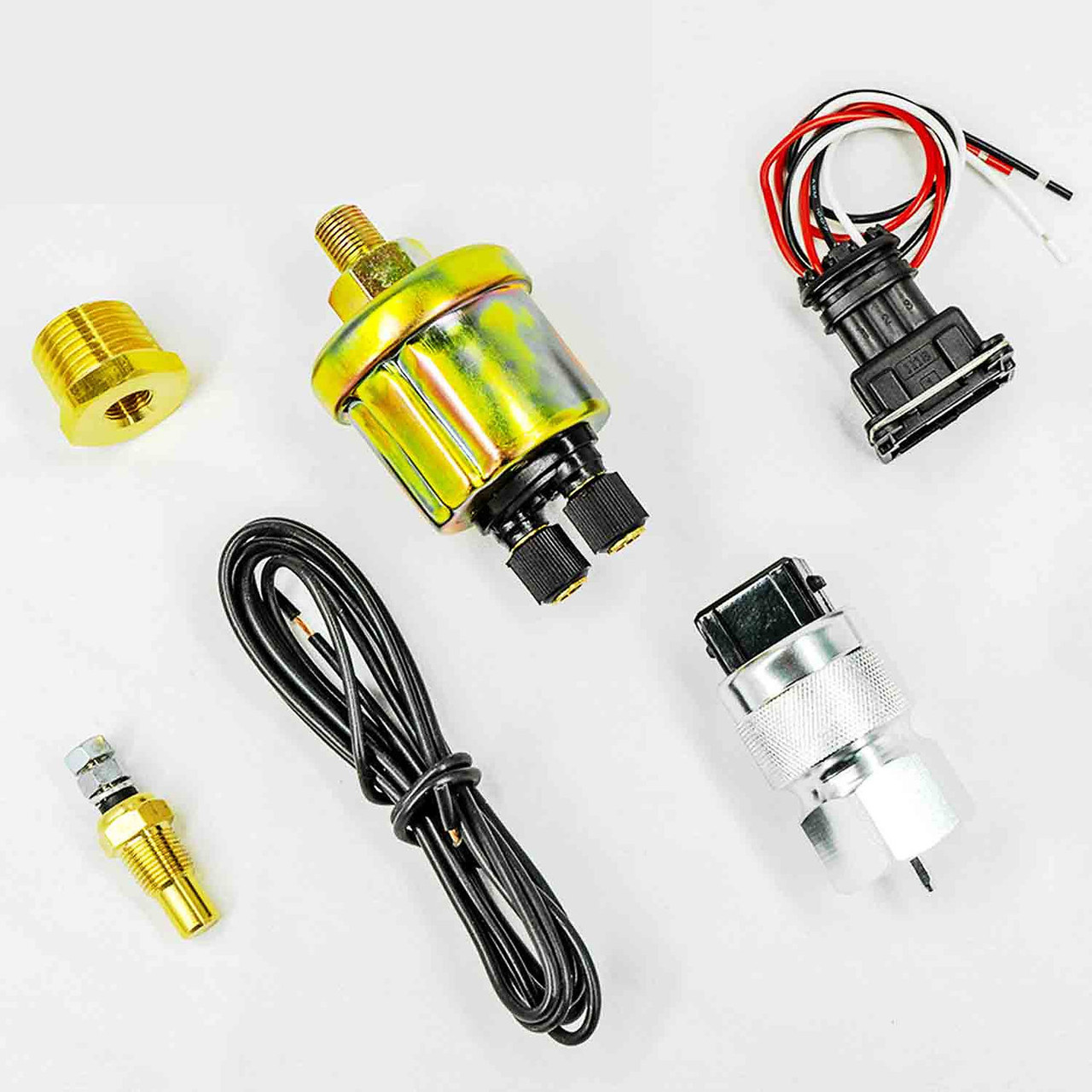

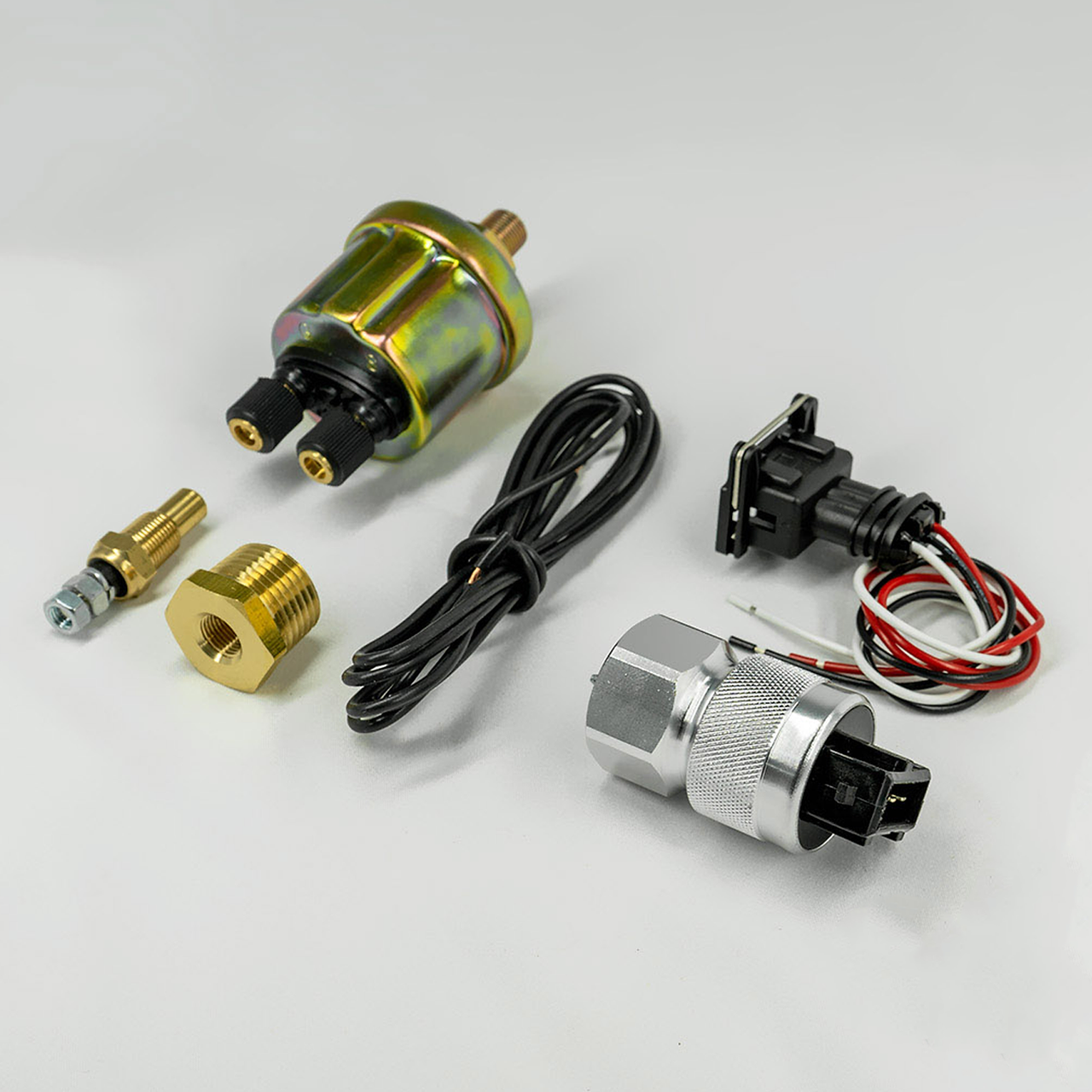

ACCESSORIES: All required sending and sensor units are included.
Enhance your ride with CREATE-A-DASH—where customization meets precision!
Upgrade your setup with these premium features:

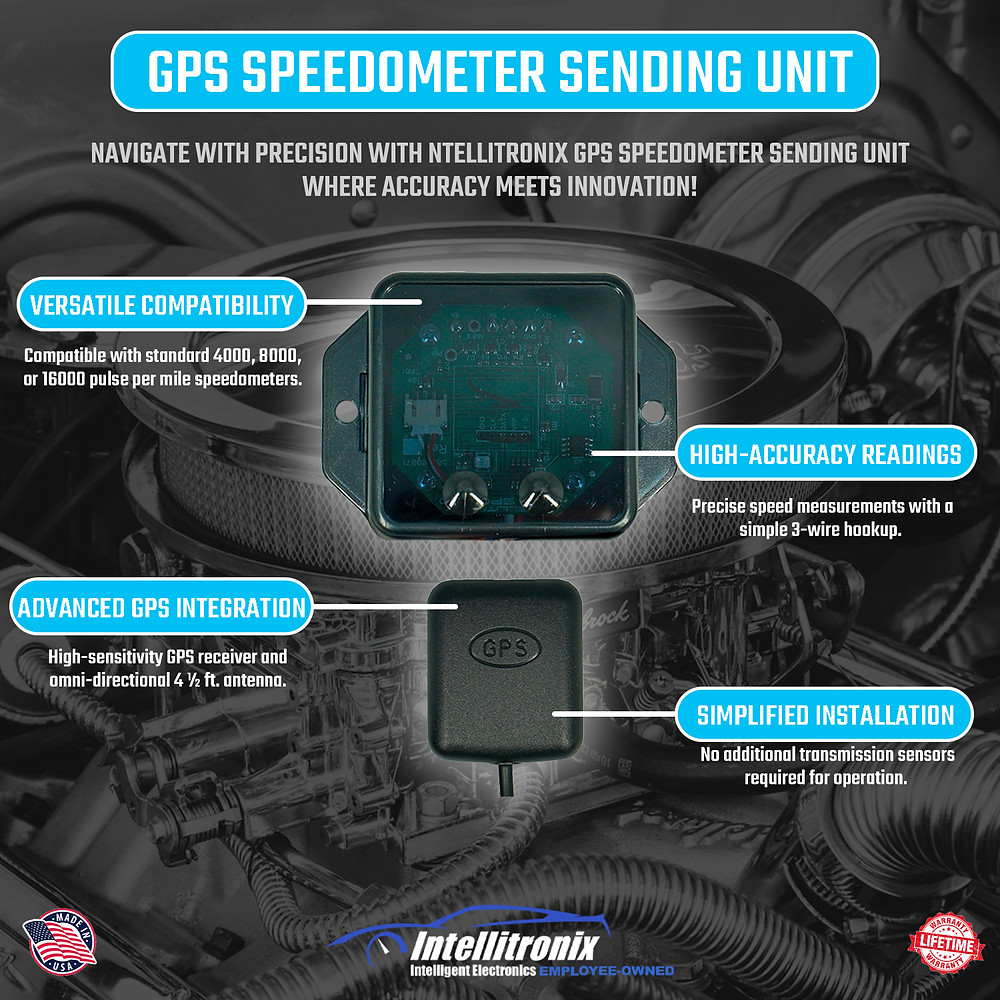

GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.

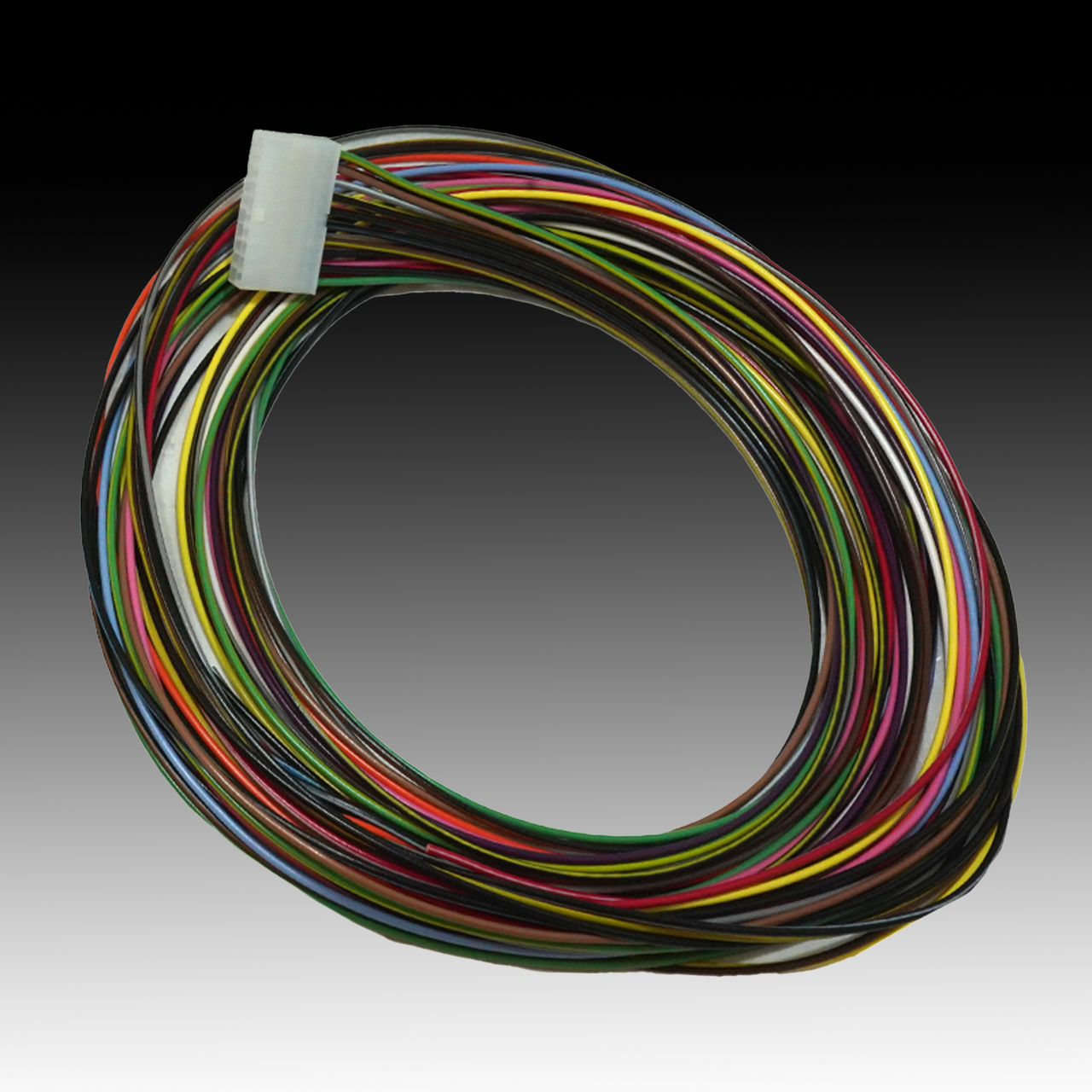

Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for:
Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.
LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.
