Product Description
1996-2006 Jeep TJ LED Digital Gauge Panel - DP6014

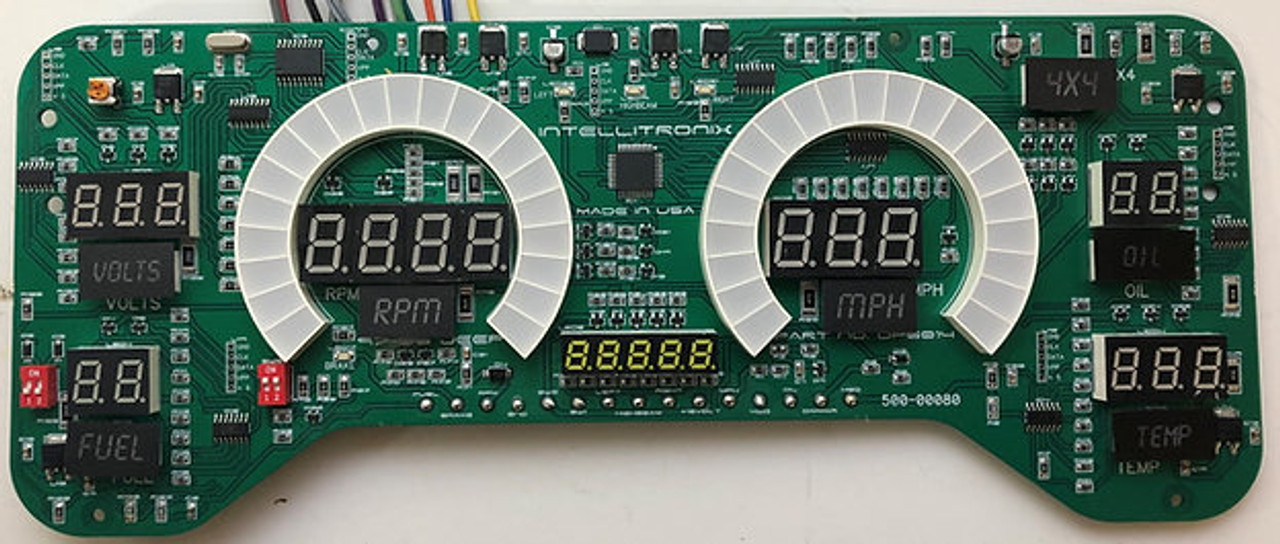

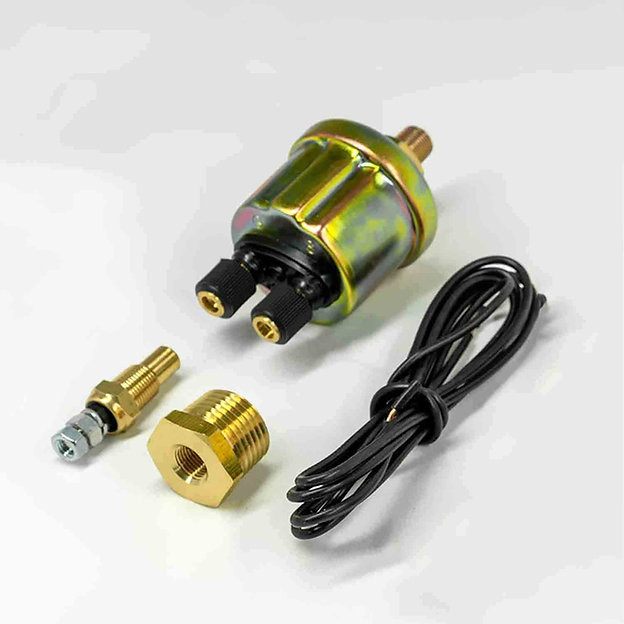

The 1996-2006 Jeep TJ will rock with the latest 96-06 Jeep TJ LED Digital Replacement Gauge Panel by Intellitronix. The modernized dash kit comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or our universal speedometer S9013 sending unit, if your vehicle is not equipped with a functional cruise control.
Tachometer displays 0-6000 RPM In 300 RPM Increments and is programmable for 4-6-8-cylinder engines. Speedometer and tachometer are a combined gauge.
Water Temperature displays 100-300°F and range sending unit S8013 is included. If you need a 3/8" bushing, please note on your order, because we send the more common 1/2" bushing--otherwise, you will have to supply the bushing on your own.
Fuel Level reads 0-99% range in 1% increments and is programmable for Jeep/Chrysler, Ford, GM, VDO 10-180 ohms and aftermarket 240-33 ohms.
The panel includes turn signals, high beam, brake, and 4-wheel drive indicators making it the ultimate way to keep the ride you love cruising through the times.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
DOES NOT WORK WITH A CAN BUS SYSTEM DIRECTLY
FEATURES:
AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
DOWNLOADS
Installation Guide
