Product Description

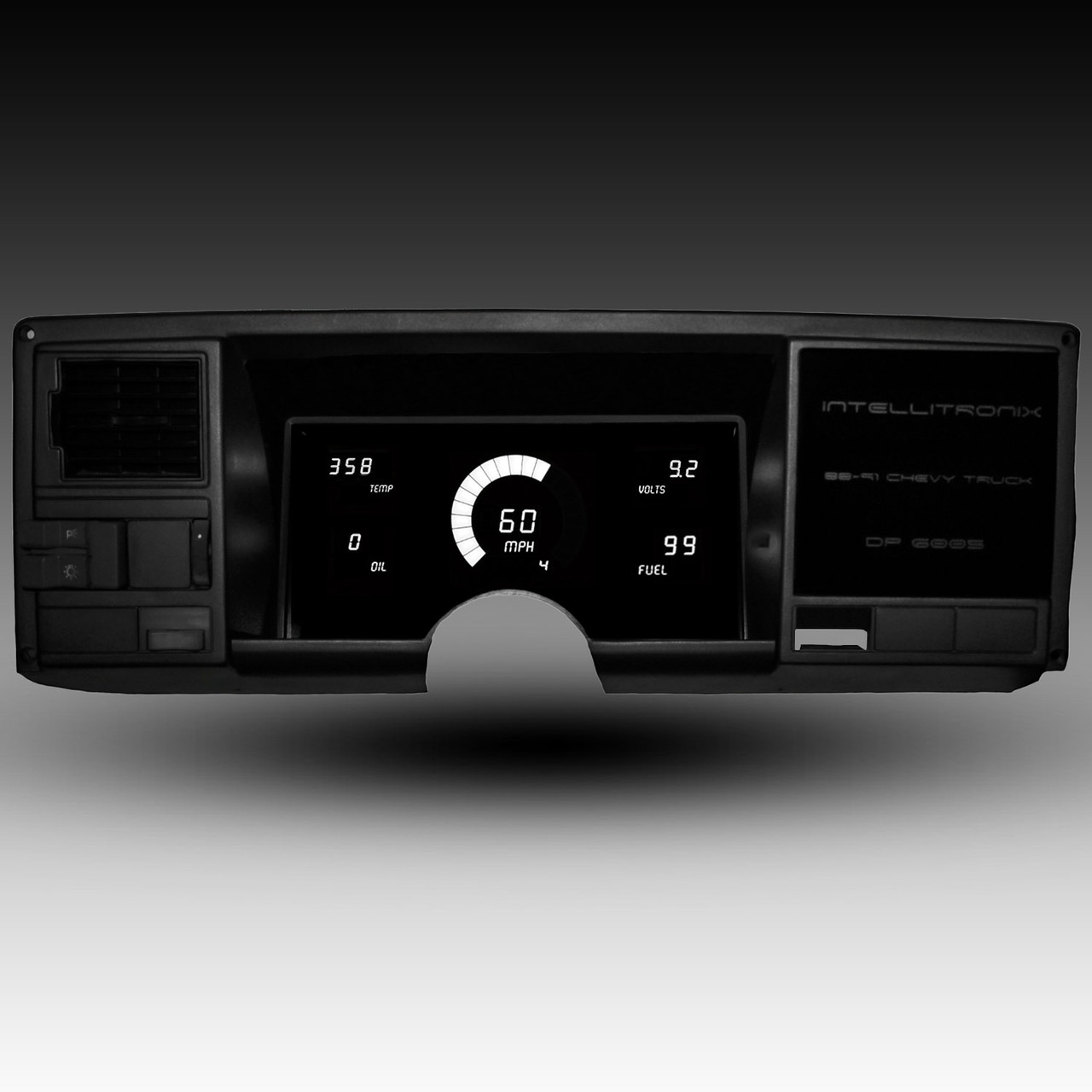

1988-91 Chevy Truck LED Digital Gauge Panel - DP6005
The 1988-91 Chevy Truck has the look and feel of elegance and will make you the envy of all Chevy truck lovers with your new 81-913 Chevy Truck LED Digital Replacement Gauge Panel by Intellitronix. Complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. This unit will connect to the vehicle VSS (vehicle speed sender) for speedometer readings.
Tachometer reads 0-9900 RPM in 100 RPM increments.
Water Temperature displays 100-300°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one.
Oil Pressure displays 0-100 PSI range. Oil pressure sender included.
Voltmeter displays 7.0-25.5 volt range and no sending unit is required.
Fuel Level displays 0-99% range in 1% increments and works with existing GM fuel level sending unit.
The panels also features a high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
Note: When installed the gauge cluster may disable the cruise control system.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:

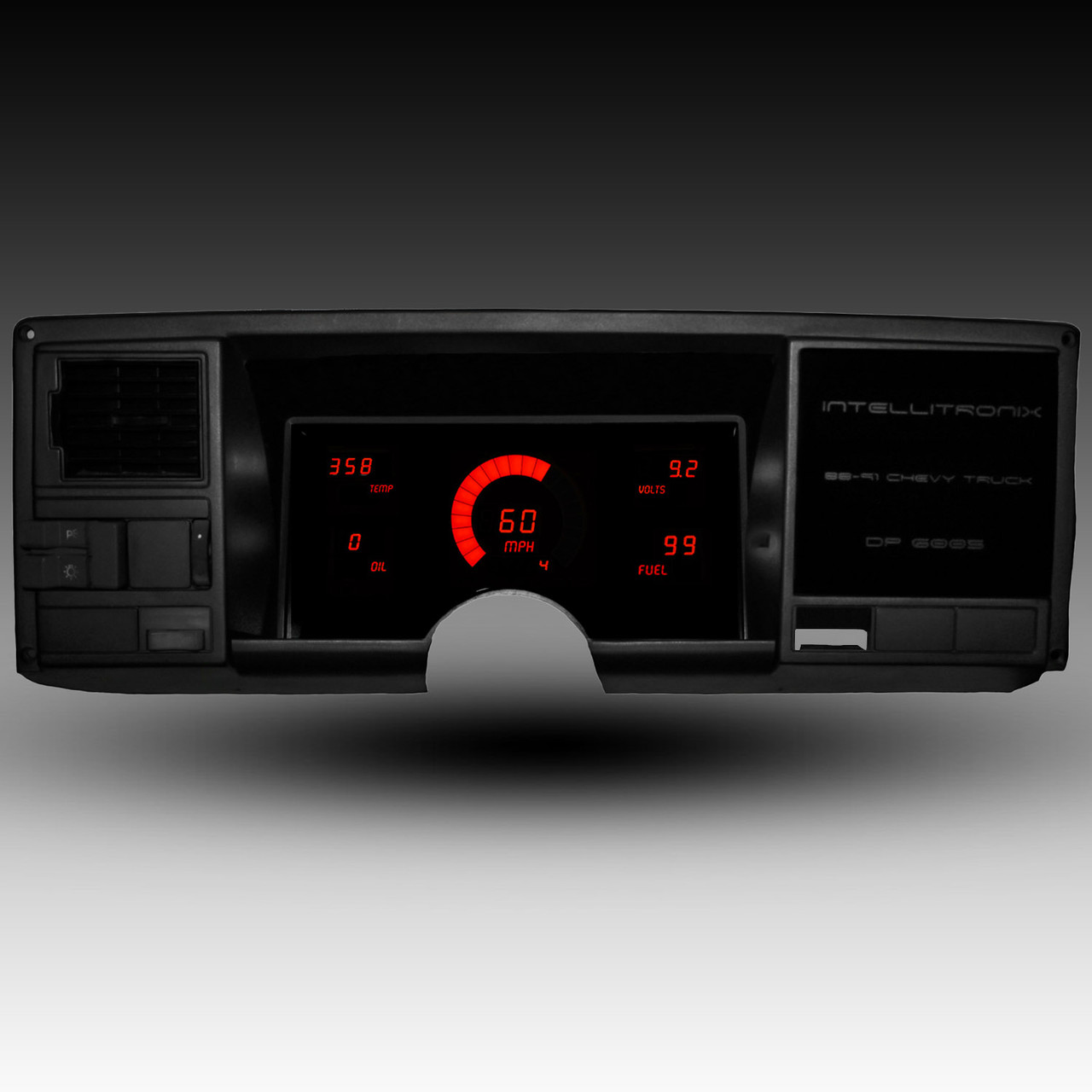

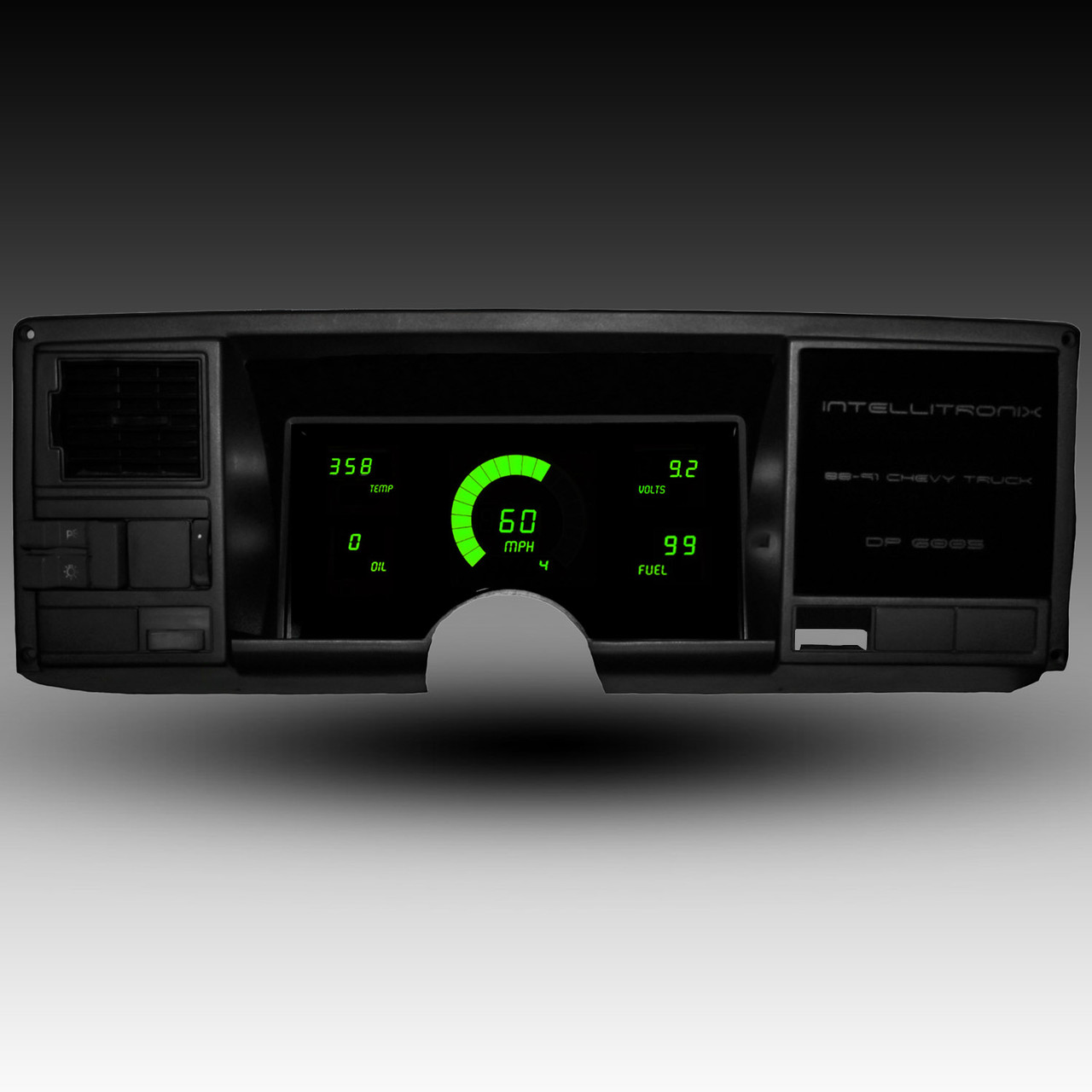

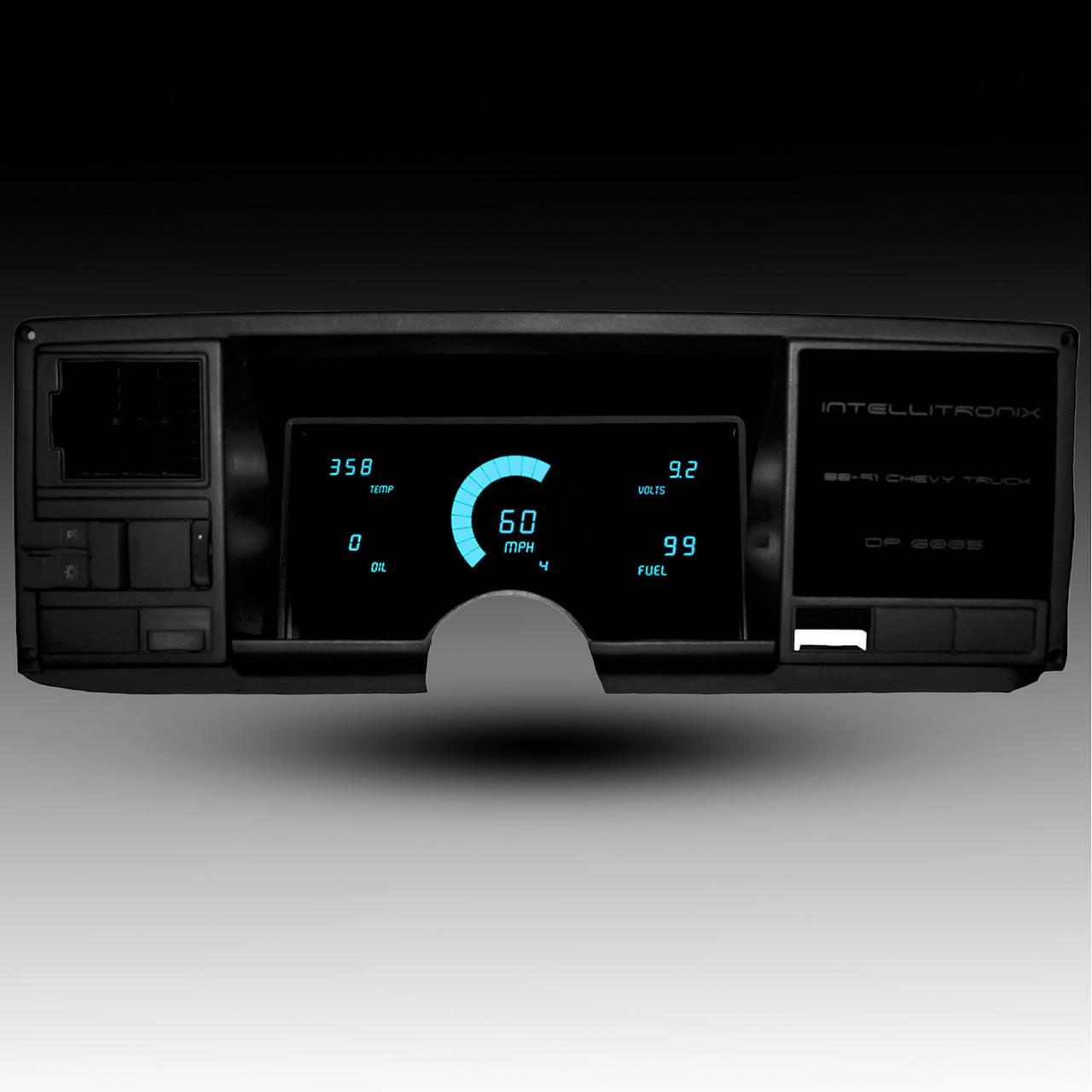

AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
DOWNLOADS
Installation Guide
