Product Description

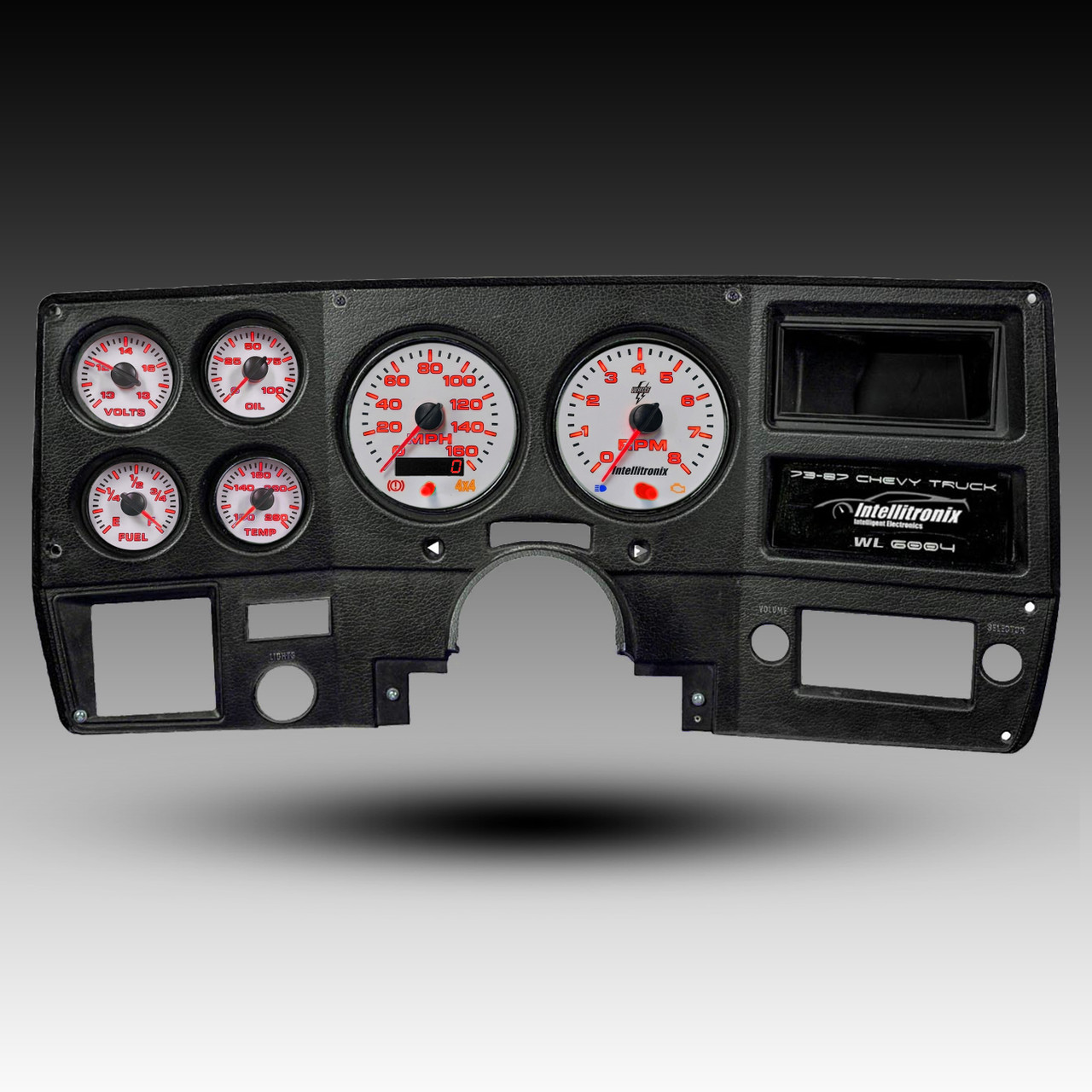

Introducing the remarkable 1973-1987 Chevy Truck LED Digital WL6004. This direct-fit gauge panel showcases an exquisite white polycarbonate subsurface adorned with a brush stroke finish, elevating your truck's dashboard to an unforgettable show-stopping level. It's not just a dashboard; it's a masterpiece. Explore a range of LED options, including Blue, Green, Orange, Purple, Red, Teal and White, to match your style.
Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission for 8-6-4-cylinder engines, odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button!
Tachometer reads from 0 to 8000 RPM in 100 RPM increments.
Water Temperature gauge reads from 100 to 260°F.
Fuel Gauge is programed to work with 0-90 GM ohms range.
Voltmeter with high and low voltage reads from 10.0 -18.0 volts range.
Oil Pressure reads from 0-100 psi.
Turn signal indicators, and high beam indicator included. It also comes with factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.
Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer sender from Intellitronix.
Automatic nighttime dimming.
Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.
BEZEL NOT INCLUDED
FEATURES:
ACCESSORIES: All required sending and sensor units are included, expect fuel
Upgrade your setup with these premium features:
GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.
Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for:
Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.
LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.
