Product Description

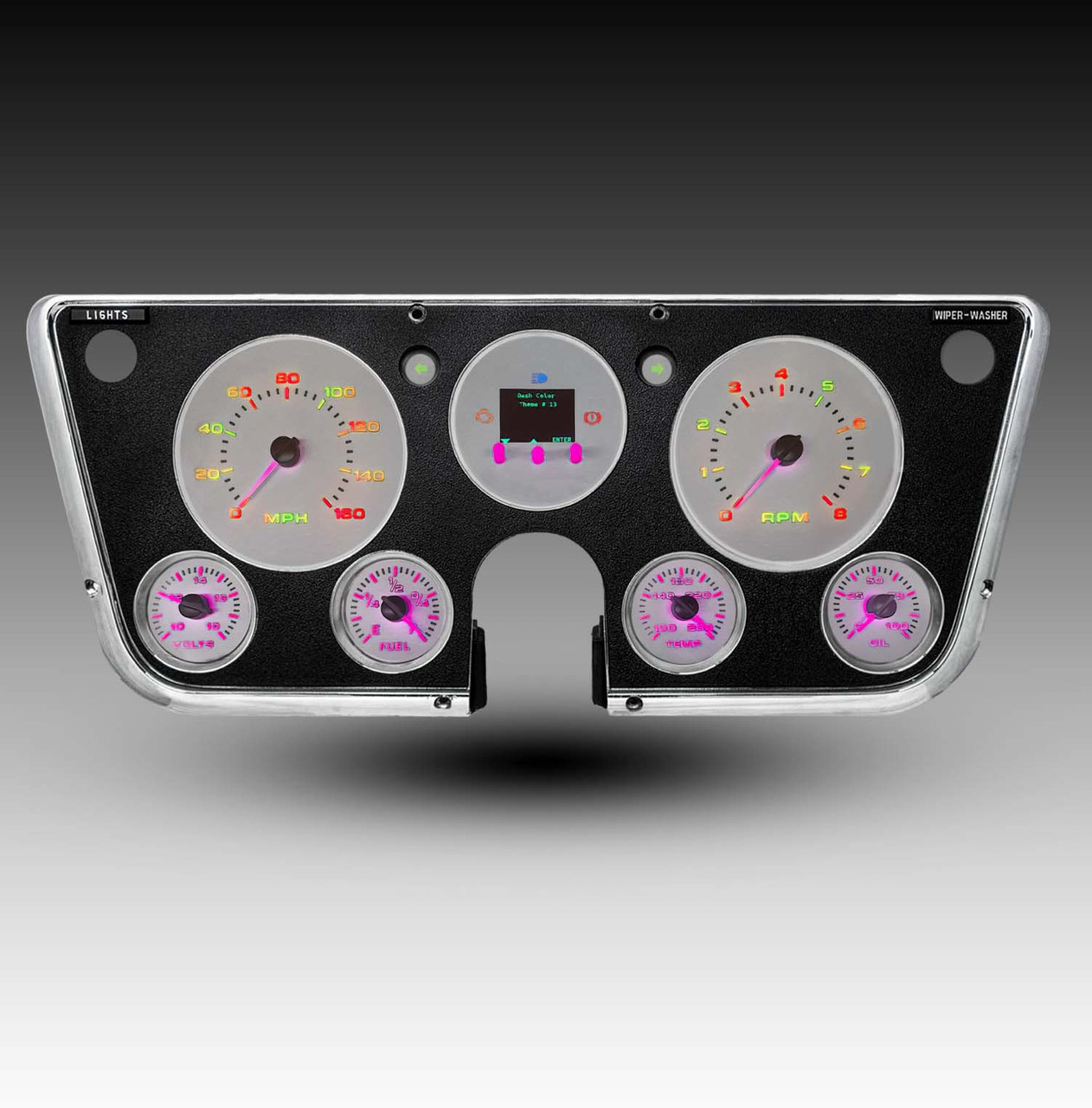

Crafted with a black polycarbonate subsurface overlay with a brush stroke finish, the Aurora Edition features 30 standard color options with fully adjustable gauges, needles, and text. Whether you want subtle factory tones or a bold custom dash theme, the Aurora delivers with 20 programmable themes (15 pre-set, 5 customizable).
Gauges & Functions:
-
Speedometer: Reads up to 160 MPH, includes one-button calibration (works with any mechanical or electronic transmissions). GPS speedometer sender available separately.
-
Tachometer: 0–8000 RPM in 100 RPM increments; selectable cylinder modes (1–16).
-
Fuel Level Gauge: User programmable; works with Ford, GM, Chrysler, VDO, and aftermarket senders.
-
Voltmeter: Adjustable calibration, reads from 10.0V to 18.0V.
-
Oil Pressure Gauge: Reads from 0–100 PSI.
-
Water Temperature Gauge: Reads from 100–260 °F.
-
Clock: Integrated digital readouts
TFT Screen & Digital Features:
-
1.27” full-color TFT display provides customizable digital readouts from any gauge
-
Odometer & trip meter
-
High-speed recall
-
0–60 time & ¼ mile elapsed time
-
Check engine, gear indicator (with optional kit), turn signals, high beam, parking brake
Aurora Exclusive Features:
-
Black & white polycarbonate overlay with brush stroke finish
-
30 standard dash colors & needle colors
-
20 dash themes (15 pre-set, 5 custom)
-
Pre-programmed demo mode
-
Adjustable brightness & nighttime dimming
-
Menu control functions: text color, MPH calibration, cylinder selection, fuel ohm selection
Accessories & Options:
-

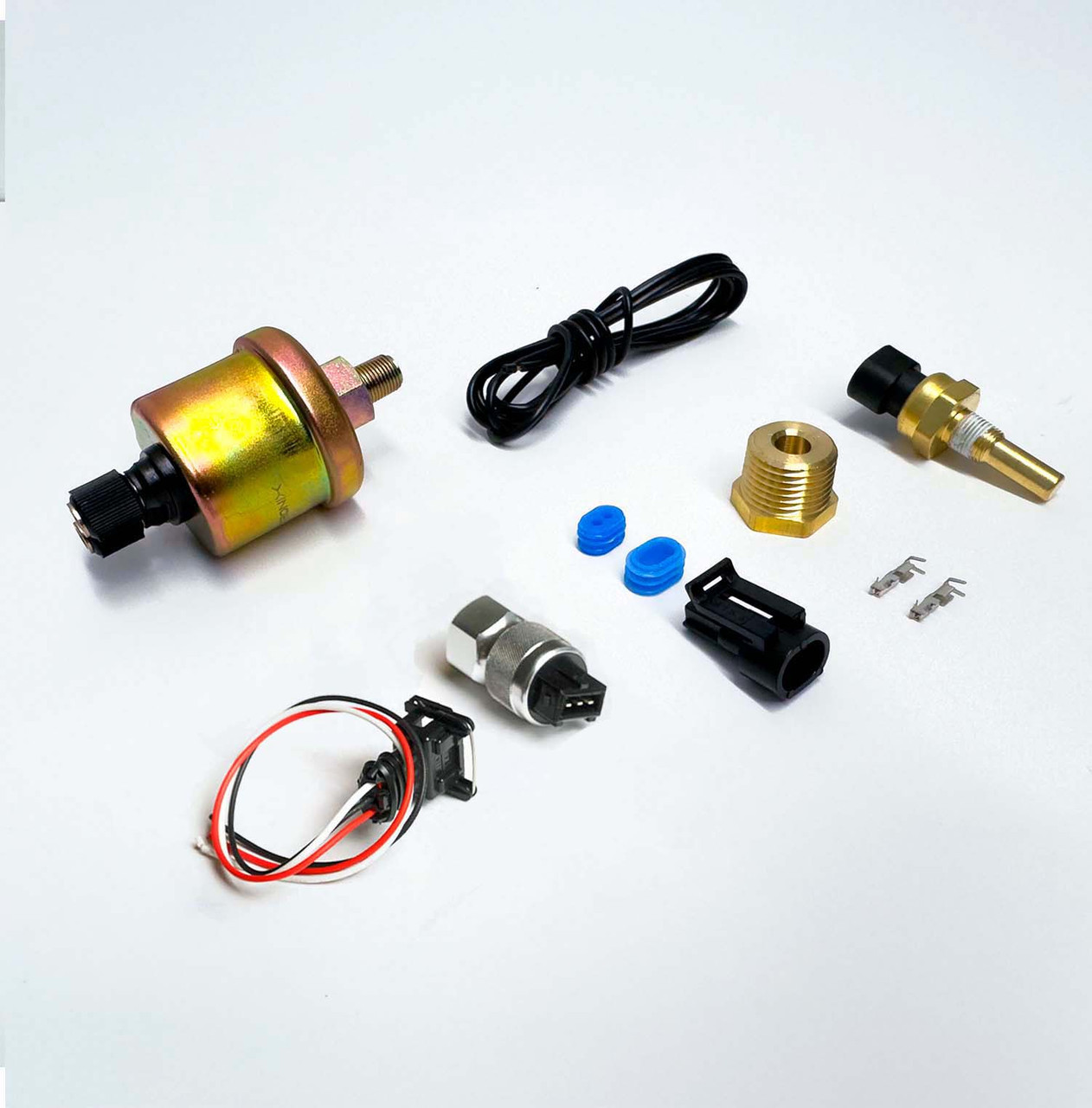

All required sending units and sensors included (standard GM speed sensor unless specified otherwise)
-
Clear plexiglass, hardware, and installation instructions included
-
Optional GPS Speedometer Sending Unit available
-
Optional Gear Shift Indicator (automatic transmissions only)
FACTORY BEZEL/HOUSING IS NOT INCLUDED-PHOTO IS FOR DISPLAY PURPOSES.

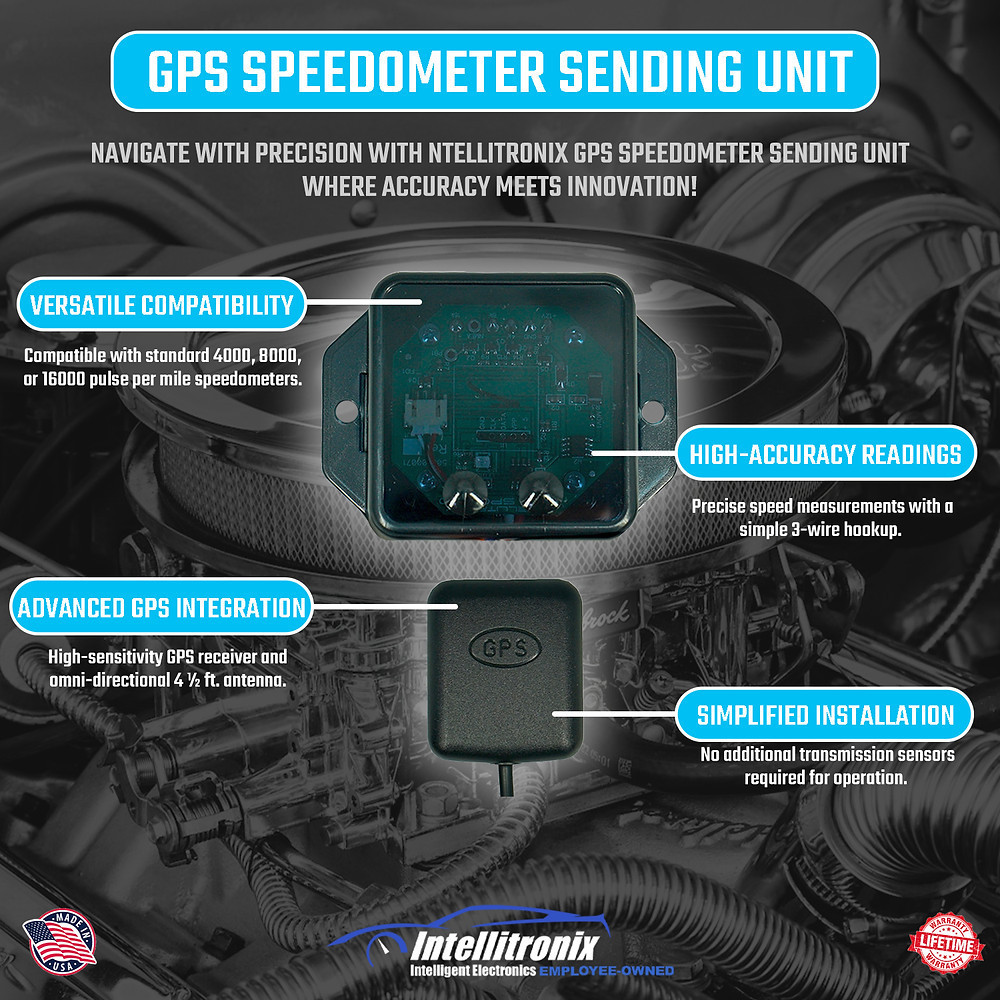

GPS Option: The Intellitronix GPS Speedometer Sending Unit offers high-accuracy readings with a simple 3-wire hookup, compatible with standard 4000, 8000, or 16000 pulse-per-mile speedometers. With built-in GPS technology and a compact design, it eliminates speed inaccuracies from tire changes or gear ratios for unmatched precision.
Upgrade your dashboard effortlessly with our Digital Gauge Replacement Panel bundled with a GPS Speedometer Sending Unit. Say goodbye to outdated gauges and hello to modern technology without the hassle. Enjoy the simplicity, ease, and affordability of our bundled offer, ensuring a seamless installation process and accurate speed readings powered by GPS. Transform your driving experience today with our convenient and cost-effective solution.
