Product Description
1960-63 Chevy Truck Analog Gauge Panel - NC6001
Introducing the NC6001 Analog Panel for 1960-63 Chevy Trucks by Intellitronix. Elevate your driving experience with this masterpiece crafted to seamlessly integrate into your classic truck, enhancing both style and functionality.
Key Features:
One standout feature of the NC6001 Analog Panel is its innovative color-changing needles, providing intuitive visual cues to the driver about the status of various readings. Here's how it works:
- Visual Feedback: Each gauge needle changes color based on the corresponding reading, offering instant visual feedback to the driver.
- Instant Recognition: With a quick glance, drivers can easily identify whether readings are within normal parameters or require attention, enhancing safety and peace of mind on the road.
- User-Friendly Interface: The color-changing needles add a dynamic element to the dashboard, making it both functional and visually appealing.
- Enhanced Driving Experience: By providing real-time feedback in an intuitive way, the color-changing needles contribute to a more engaging and informed driving experience.
Whether it's monitoring engine vitals or keeping an eye on speed, the color-changing needles on the NC6001 Analog Panel offer a unique and effective way for drivers to stay connected to their vehicle's performance at all times.
Speedometer: Enjoy precise readings up to 160 MPH with easy one-button calibration. Features include odometer, trip meter, high-speed recall, 0-60 time, and ¼ mile elapsed time.
Tachometer: Designed for 8-6-4 cylinder engines, this tachometer accurately reads from 0 to 8000 RPM in 100 RPM increments.
Fuel Gauge: Customizable to work with 0-30 and 0-90 ohms
Voltmeter: Monitor your vehicle's electrical system with readings ranging from 10.0 to 18.0 volts.
Oil Pressure: Keep track of your engine's health with readings from 0-100 PSI, complete with sender.
Water Temperature: Ensure optimal engine performance with temperature readings from 100 to 260 degrees Fahrenheit, including sender.
Additional Features:
- Includes turn signal indicators and high beam indicator for added safety.
- Backed by a factory lifetime warranty for ultimate peace of mind.
- Compatible with both mechanical and electronic transmissions, with optional GPS speedometer sender available.
- Automatic nighttime dimming ensures enhanced visibility without distracting glare.
Ease of Installation & Warranty:
- Simple installation process with all necessary hardware and instructions provided.
- Rest easy with our factory lifetime warranty, guaranteeing long-lasting performance.
Note: BEZEL NOT INCLUDED
Features:
- User-friendly interface designed for clear readability.
- Constructed from high-quality materials for unmatched durability.
- Elevate your truck's dashboard with these premium gauges.
Accessories:

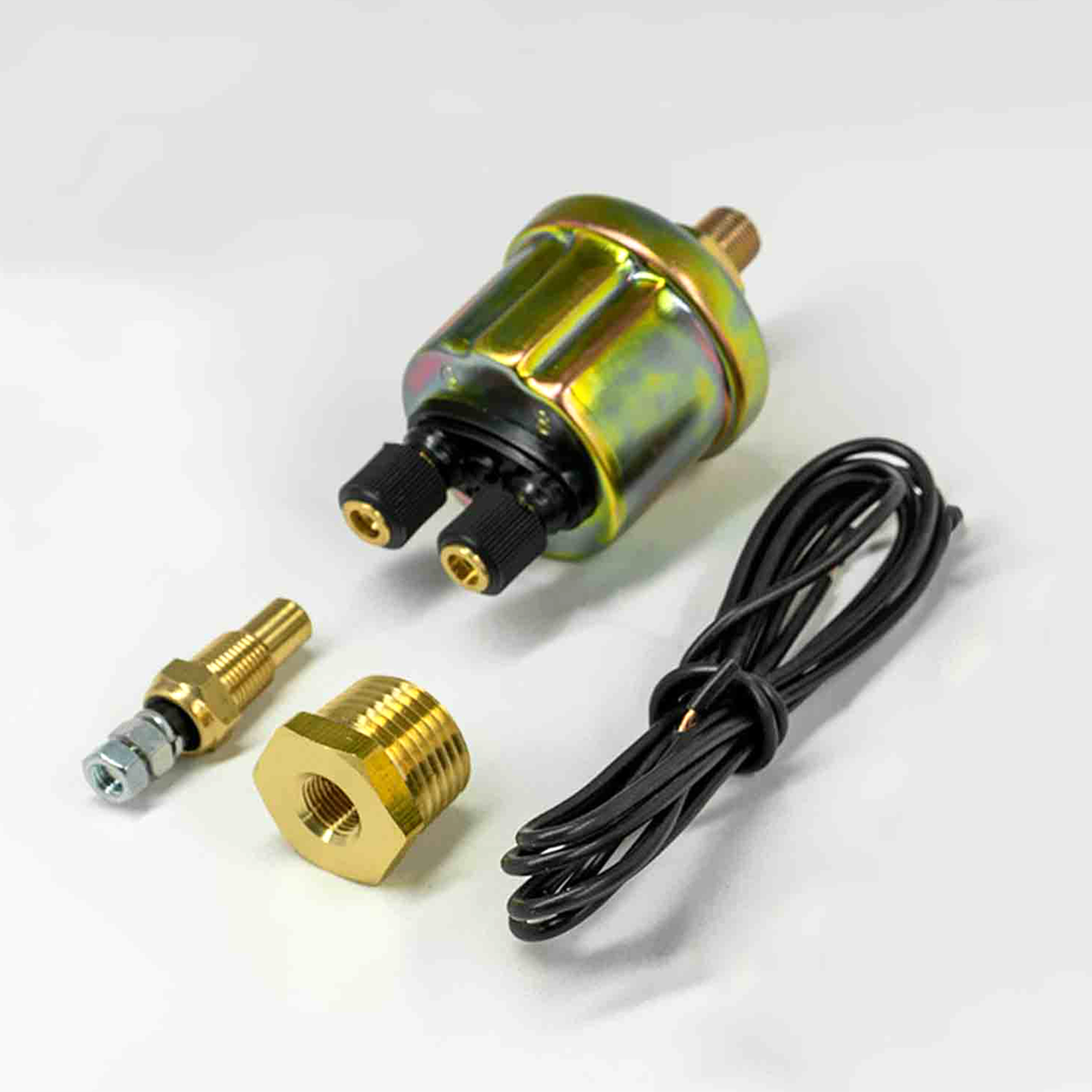

- All required sending and sensor units are included for added convenience.
- Please note that the factory bezel/housing is not included, and the photo is for display purposes only.
Upgrade your 1960-63 Chevy Truck with the NC6001 Analog Panel from Intellitronix, where style meets precision.
Upgrade your setup with these premium features:
GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.
Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for:
Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.
LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.
