Product Description

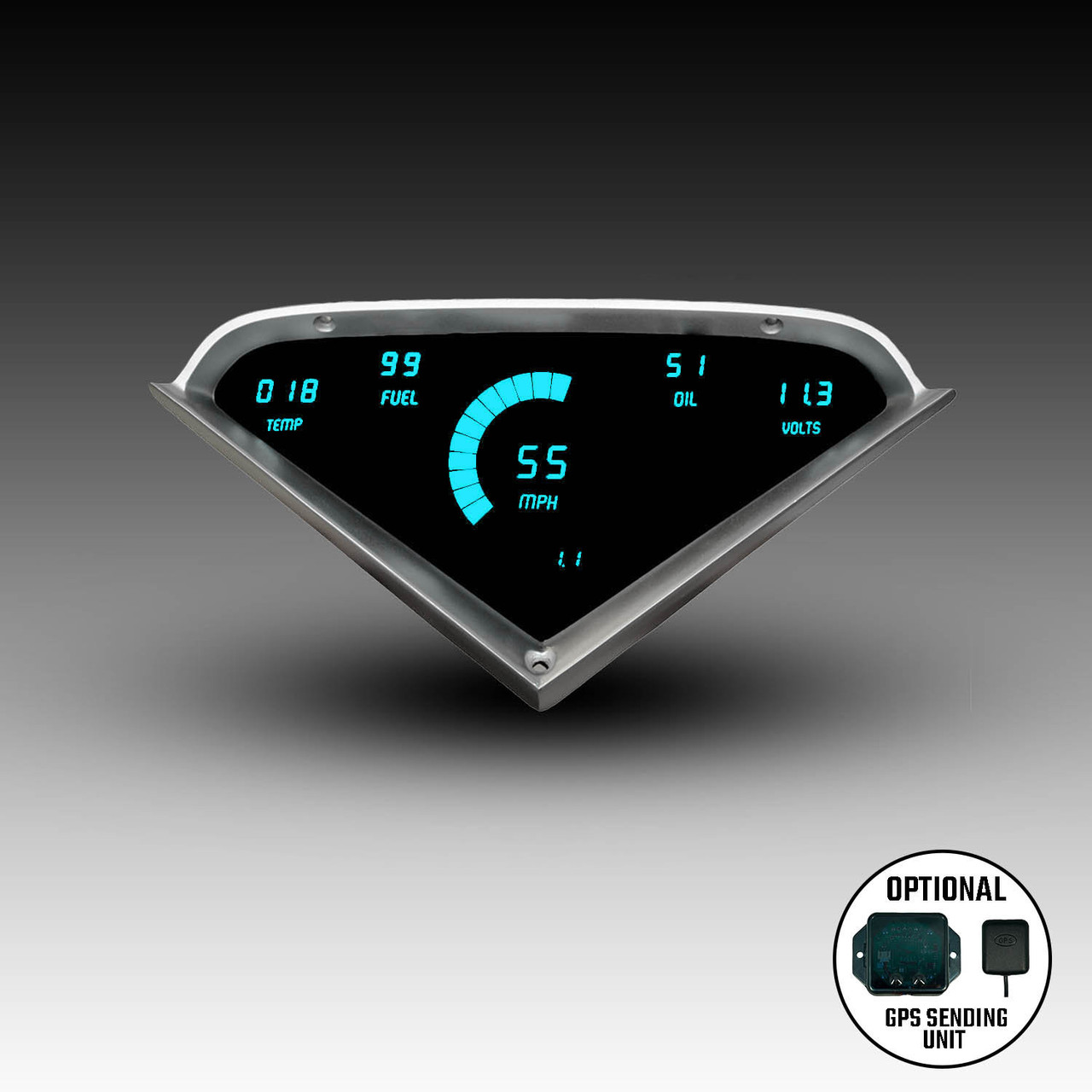

Your classic 1955-59 Chevy Truck is remnant of a Bowtie era. The 55-59 Chevy Truck LED Digital Replacement Gauge Panel by Intellitronix comes complete with direct fit printed circuit boards, custom fit "smoked" Plexiglas faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
Tachometer displays 0-9900 RPM in 100 RPM increments.
Water Temperature displays 100-300°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out.
Oil Pressure displays 0-100 PSI range. Oil pressure sender included.
Voltmeter displays with 7.0-25.5 volt range and no sending unit is required.
Fuel Level display with 0-99% range in 1% increments and works with existing GM fuel level sending unit.
The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
Note: When installed the gauge cluster may disable the cruise control system.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
Upgrade your setup with these premium features:
GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.
Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for:
Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.
LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.
DOWNLOADS
Installation Guide
