Product Description

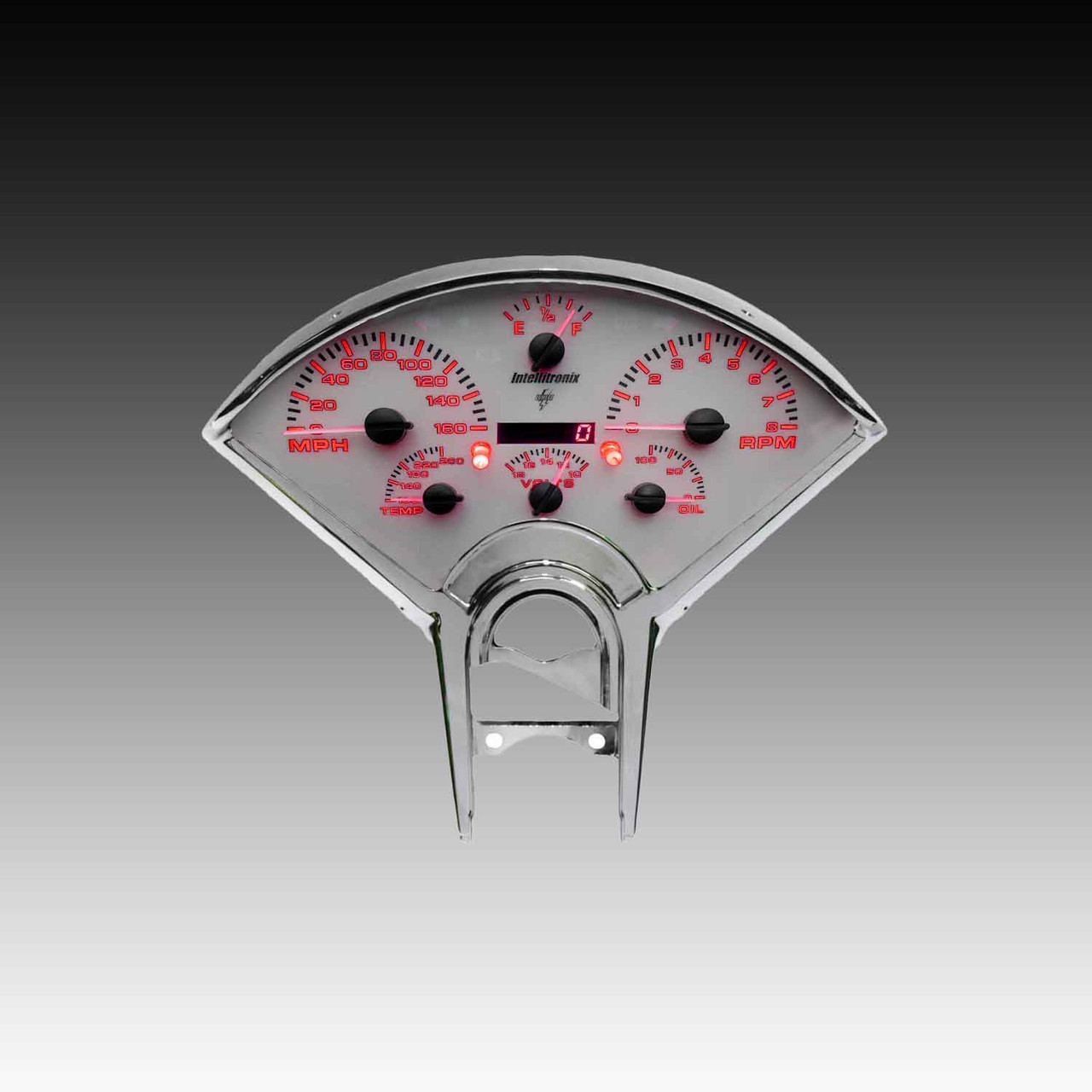

Now, experience the mesmerizing charm of our 1955-1956 Chevy Bel Air Direct Fit Analog Gauge Panel
Crafted with our distinctive white polycarbonate subsurface featuring a brush stroke finish, it transforms your dashboard into an unforgettable showpiece. This masterpiece, available in Blue, Green, Orange, Purple, Red, Teal and White LEDs, is a true work of art, elevating your driving experience to new heights.
Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission for 8-6-4-cylinder engines, odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button! GPS sender included.
Tachometer reads from 0 to 8000 RPM in 100 RPM increments.
Water Temperature gauge reads from 100 to 260°F. Sending unit included.
Fuel Gauge is user programmable to work with 0-30 or 0-90 GM ohms ranges.
Voltmeter with high and low voltage reads from 10.0 -18.0 volts range.
Oil Pressure reads from 0-100 psi. Sending unit included.
Turn signal indicators, high beam indicator, parking brake and check engine included. It also comes with factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.
Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer sender from Intellitronix.
Automatic nighttime dimming.
Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.
BEZEL NOT INCLUDED
FEATURES:
ACCESSORIES: All required sending and sensor units are included
Upgrade your setup with these premium features:
GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.
Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for:
Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.
LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.
